Виберіть ДЕТАЛЬ:
| 82020 |
HARNESS ASSY, WIRING COWL TO HEADLAMP | | 82024 |
WIRE SUB-ASSY, FOG LAMP FEED | | 82111 |
WIRE, ENGINE ROOM MAIN | | 82112 |
WIRE, ENGINE ROOM, NO.2 | | 82113 |
WIRE, ENGINE ROOM, NO.3 | | 82114 |
WIRE, ENGINE ROOM, NO.4 | | 82121 |
WIRE, ENGINE | | 82122 |
WIRE, ENGINE, NO.2 | | 82125 |
WIRE, TRANSMISSION | | 82131 |
WIRE, COWL | | 82151 |
WIRE, FRONT DOOR, RH | | 82152 |
WIRE, FRONT DOOR, LH | | 82164 |
WIRE, FRAME | | 82171 |
WIRE, ROOF, NO.1 | | 82185 |
WIRE, BACK DOOR, NO.2 | | 82186 |
WIRE, REAR WINDOW, NO.1 | | 82188A |
WIRE, BACK DOOR, NO.3 | | 82210C |
FUSIBLE LINK | | 82223 |
WIRE, SWITCH | | 82241C |
WIRE, RELAY | | 82345 |
DIODE | | 82719 |
COVER, WIRE HANRESS SERVICE HOLE(FOR CENTER PILLAR) | | 82719A |
COVER, WIRE HANRESS SERVICE HOLE(FOR ROOF BACK) | | 82823T |
CAP, ALTERNATOR TERMINAL | | 82824 |
CONNECTOR, WIRING HARNESS | | 82824D |
CONNECTOR, WIRING HARNESS |
|

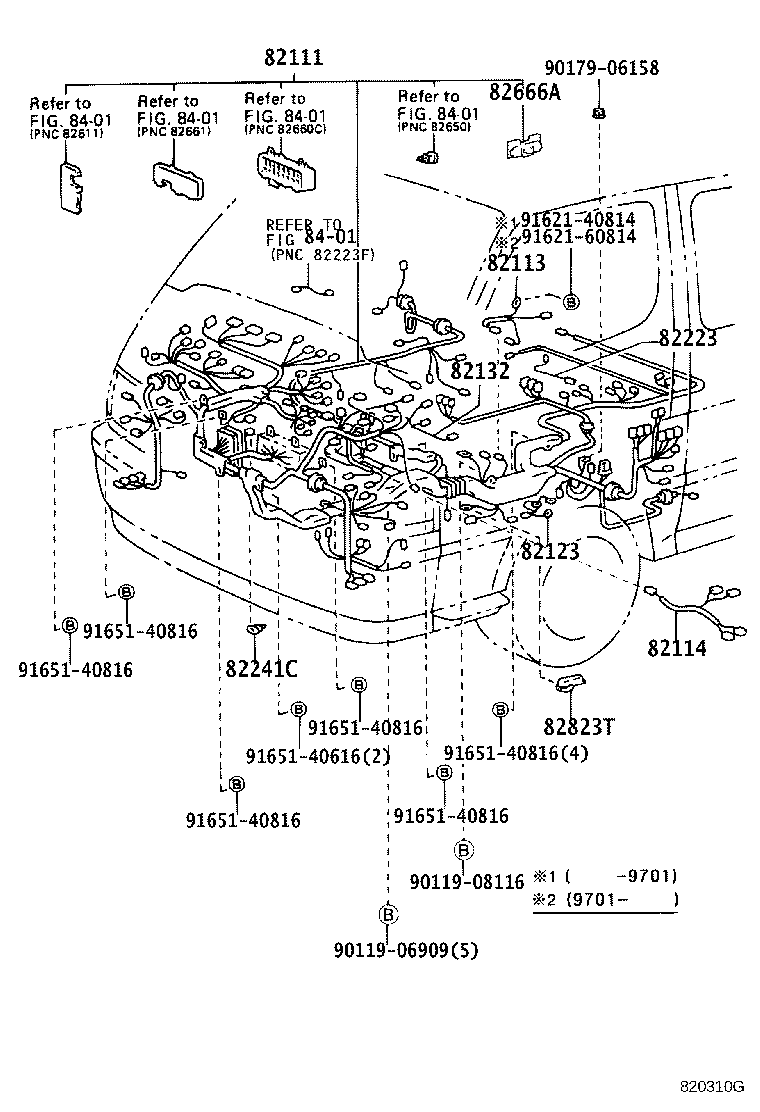

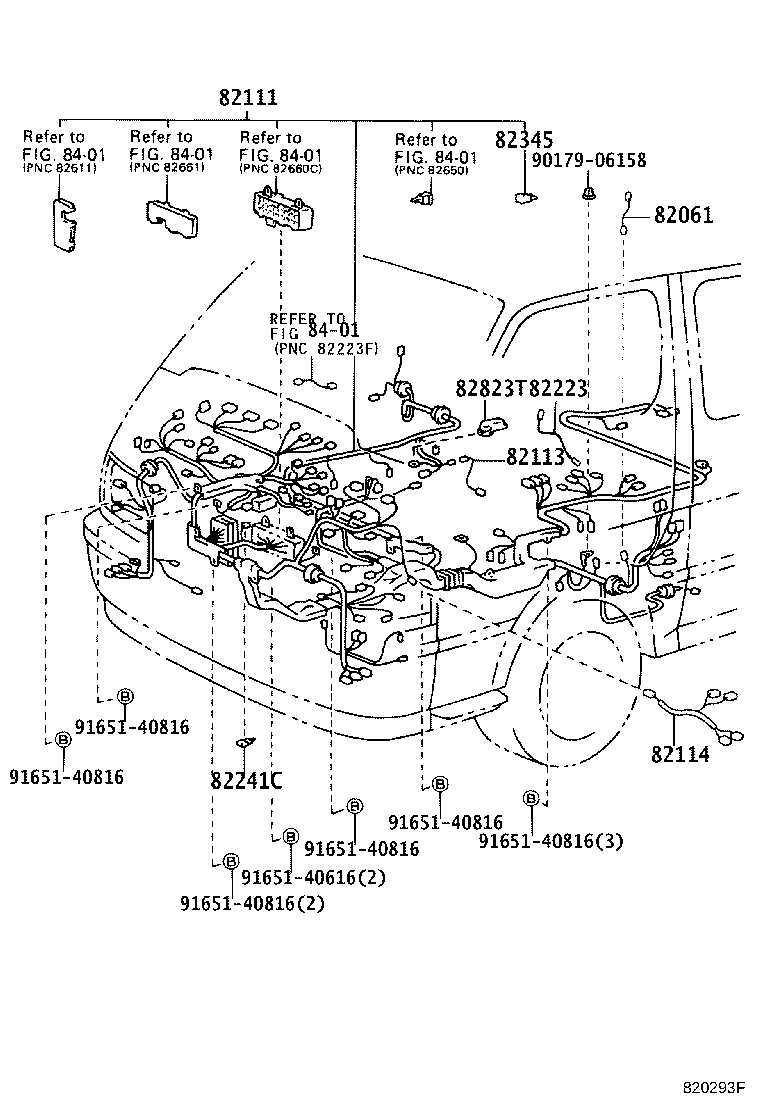

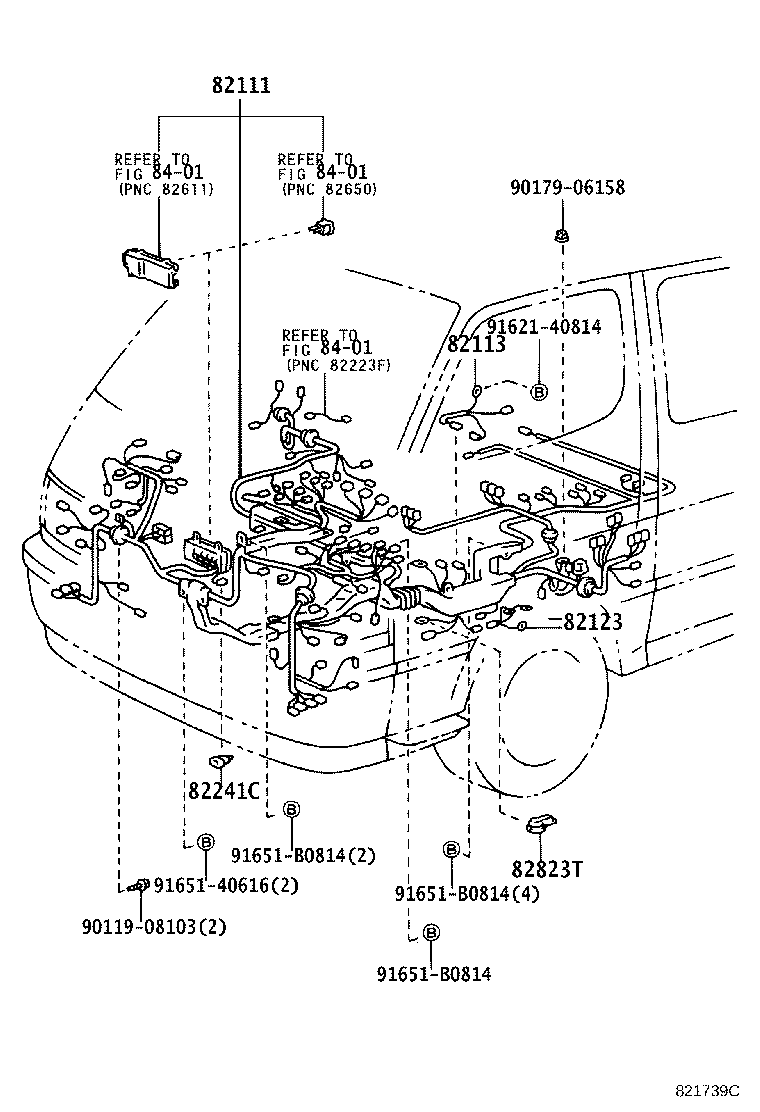

 | ENGINE ROOM WIRE ILLUST NO. 1 OF12(8908- )LH10#,11#,125,16#,17#,184
 | |
| ENGINE ROOM WIRE ILLUST NO. 1 OF12(8908- )RZH10#,11#,125,135,153..RHD
 | |
| ENGINE ROOM WIRE ILLUST NO. 1 OF12(8908- )LH102,104,105,11#,154,164,166,172,174
 | |
| ..LHD
| |
| ENGINE ROOM WIRE ILLUST NO. 1 OF12(8908- )RZH10#,11#,155..LHD
 | |

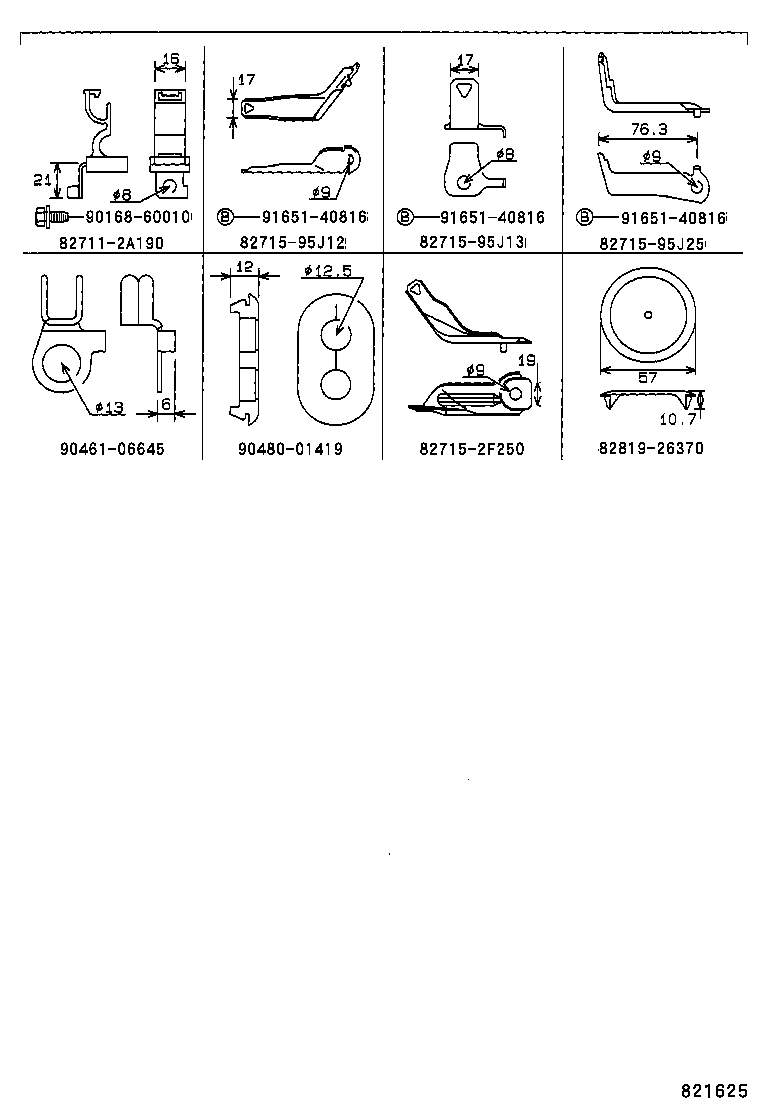

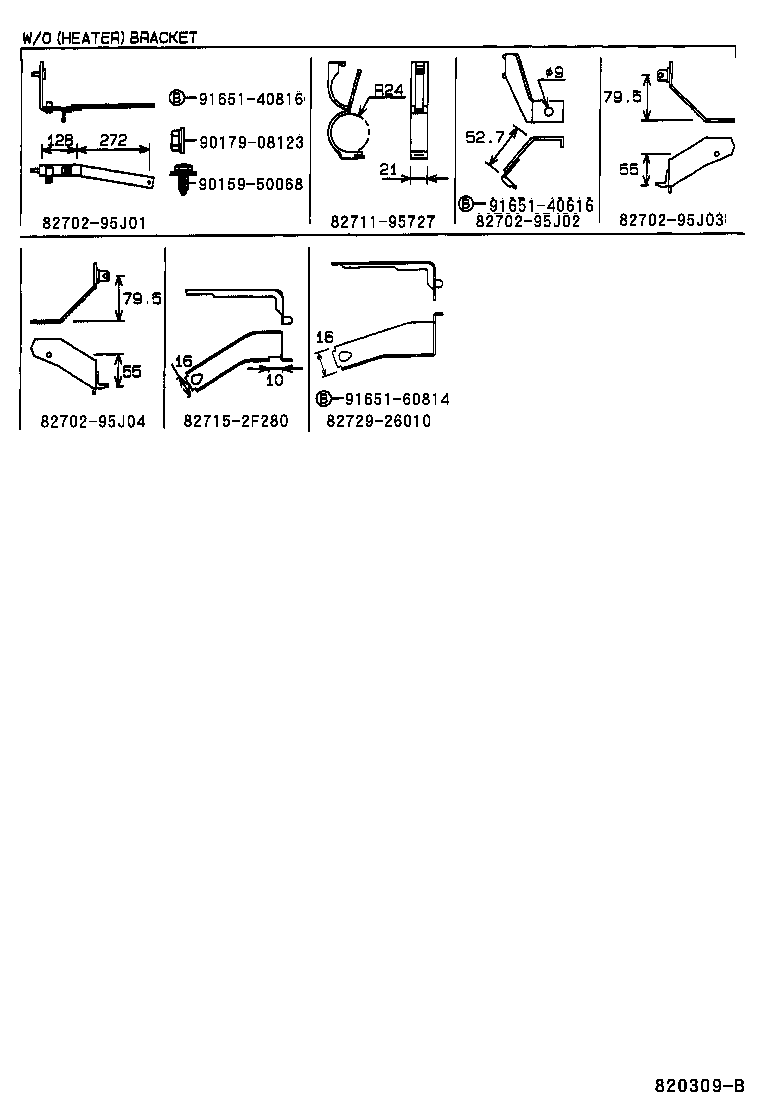

| ENGINE ROOM WIRE CLAMPS ILLUST NO. 1 OF12(8908- )
 | |
| ENGINE ROOM WIRE CLAMPS ILLUST NO. 1 OF12(8908- )
 | |

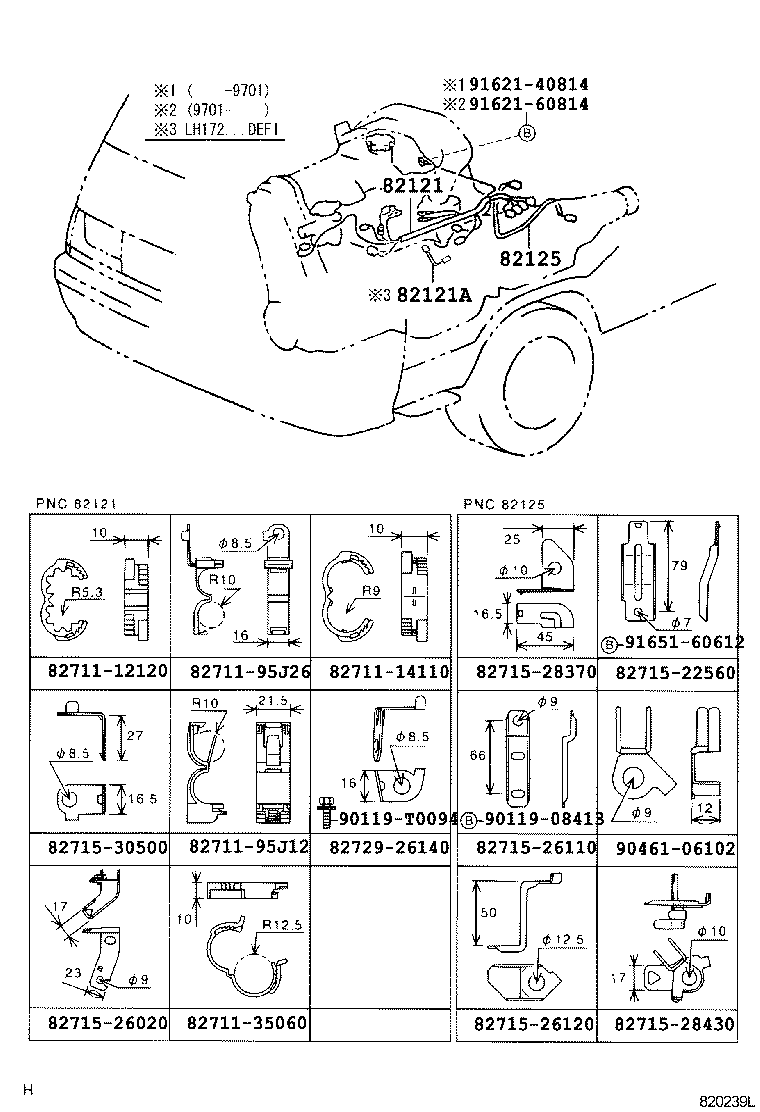

| ENGINE WIRE ILLUST NO. 2 OF12(8908- )
 | |
| ENGINE WIRE NO.2 ILLUST NO. 3 OF12(8908- )
 | |
| ENGINE WIRE NO.2 CLAMPS ILLUST NO. 3 OF12(8908- )
 | |

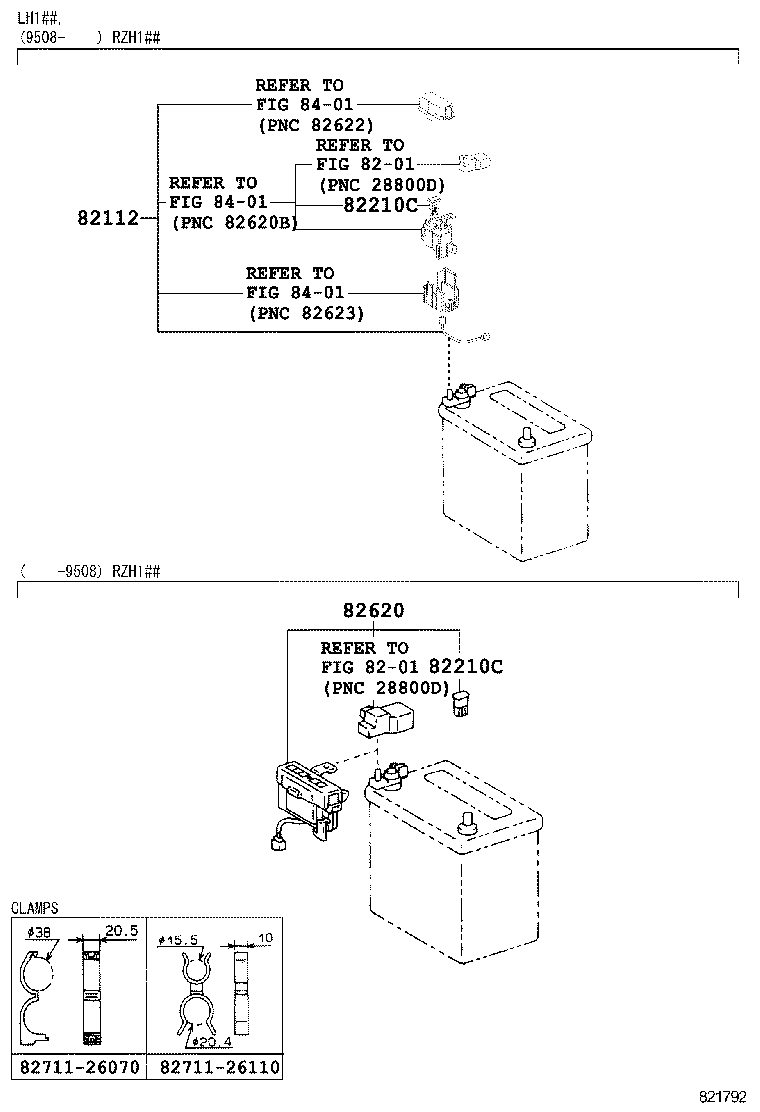

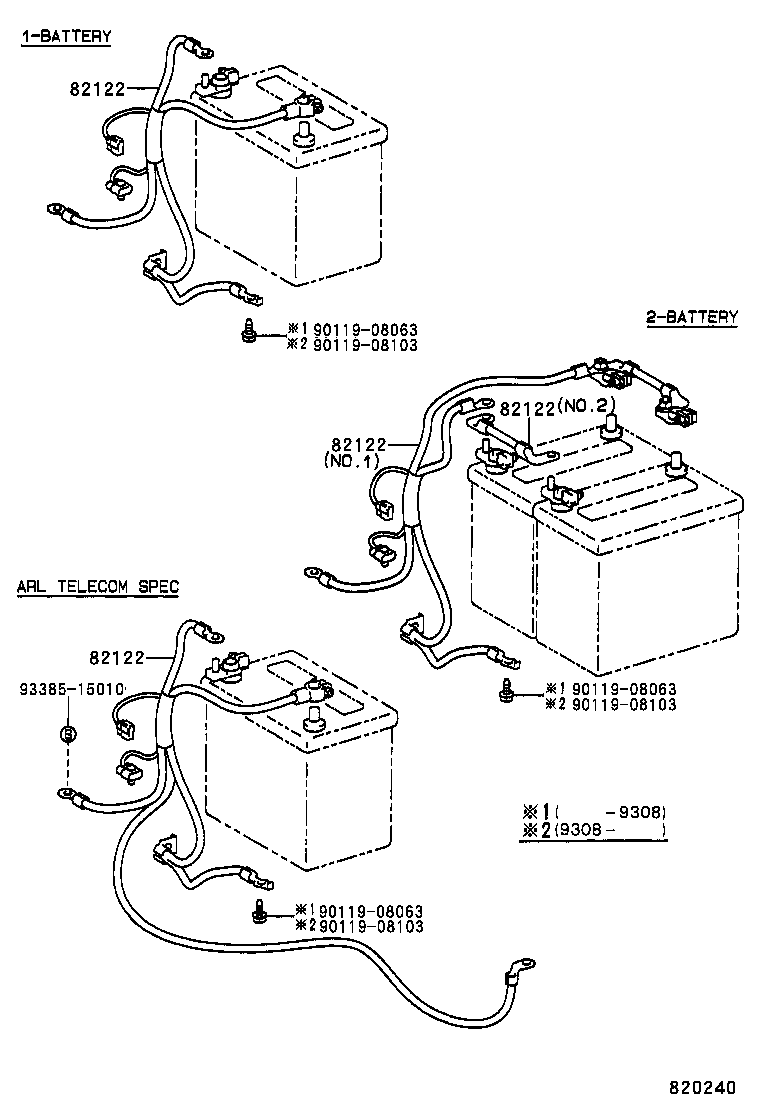

| ENGINE ROOM WIRE NO.2, 1-BATTERY ILLUST NO. 4 OF12(8908- )
 | |
| ENGINE ROOM WIRE NO.2, 2-BATTERY ILLUST NO. 4 OF12(8908- )
 | |

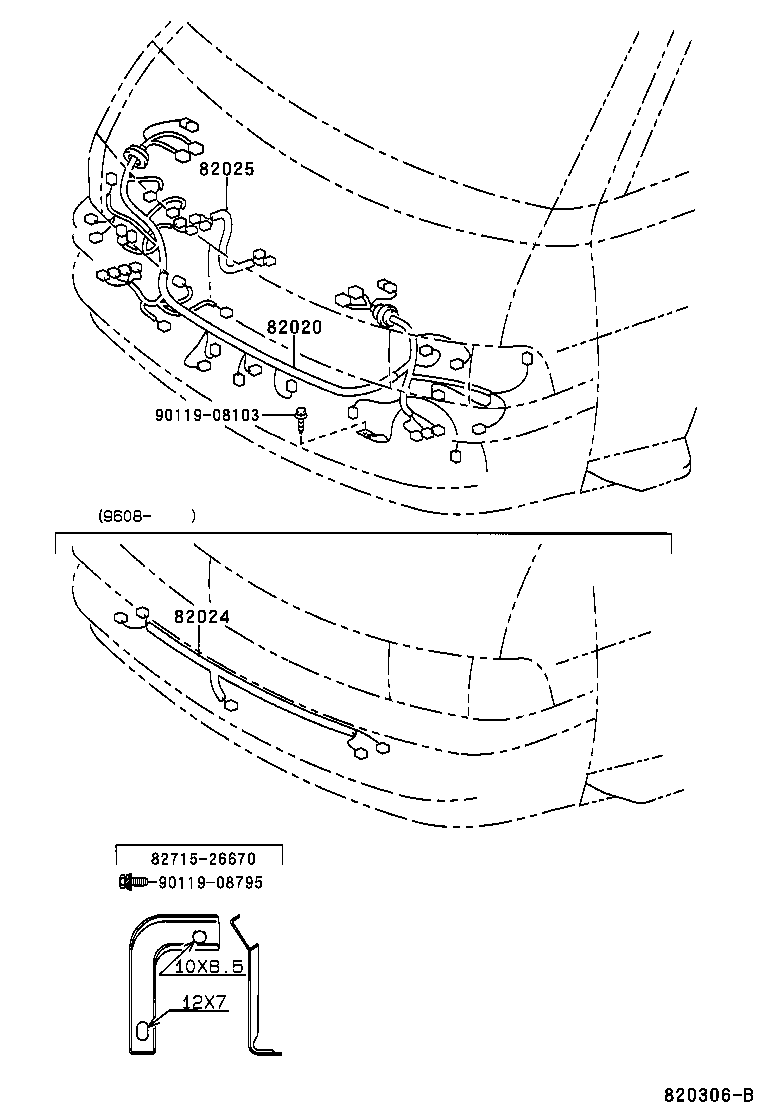

| COWL TO HEADLAMP,FOGLAMP FEED WIRE ILLUST NO. 5 OF12(9608- )
 | |

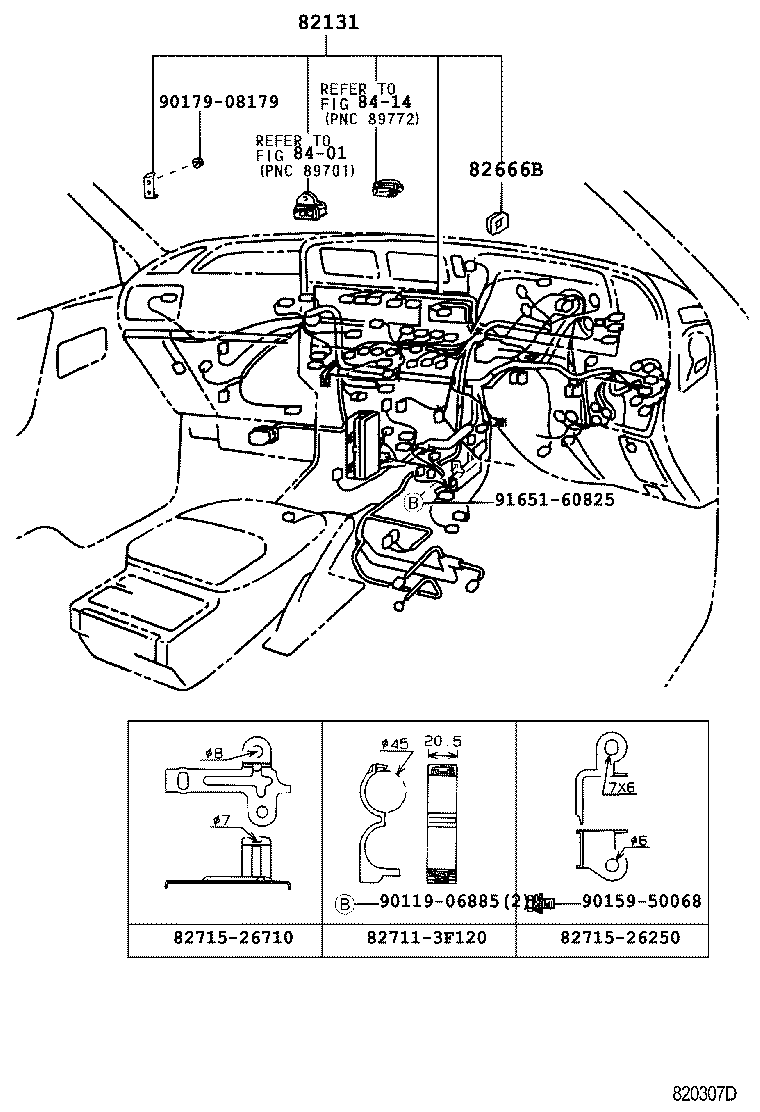

| COWL WIRE ILLUST NO. 6 OF12(9608- )
 | |

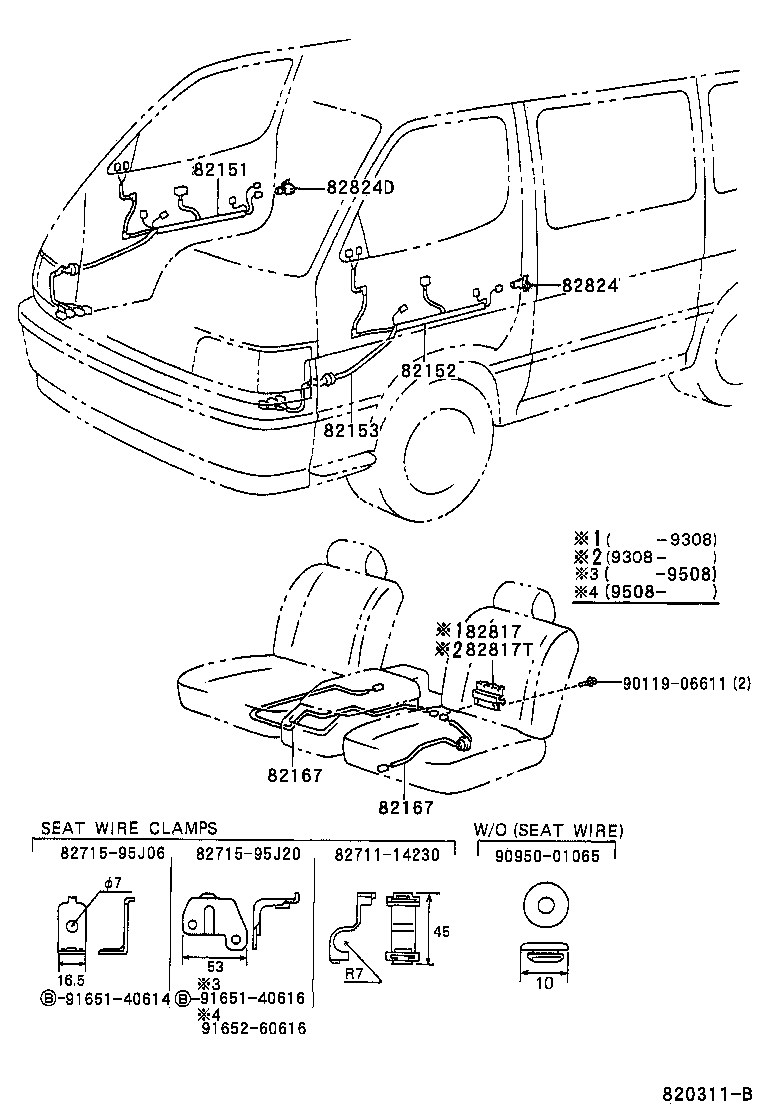

| DOOR & SEAT WIRE ILLUST NO. 7 OF12(8908- )
 | |

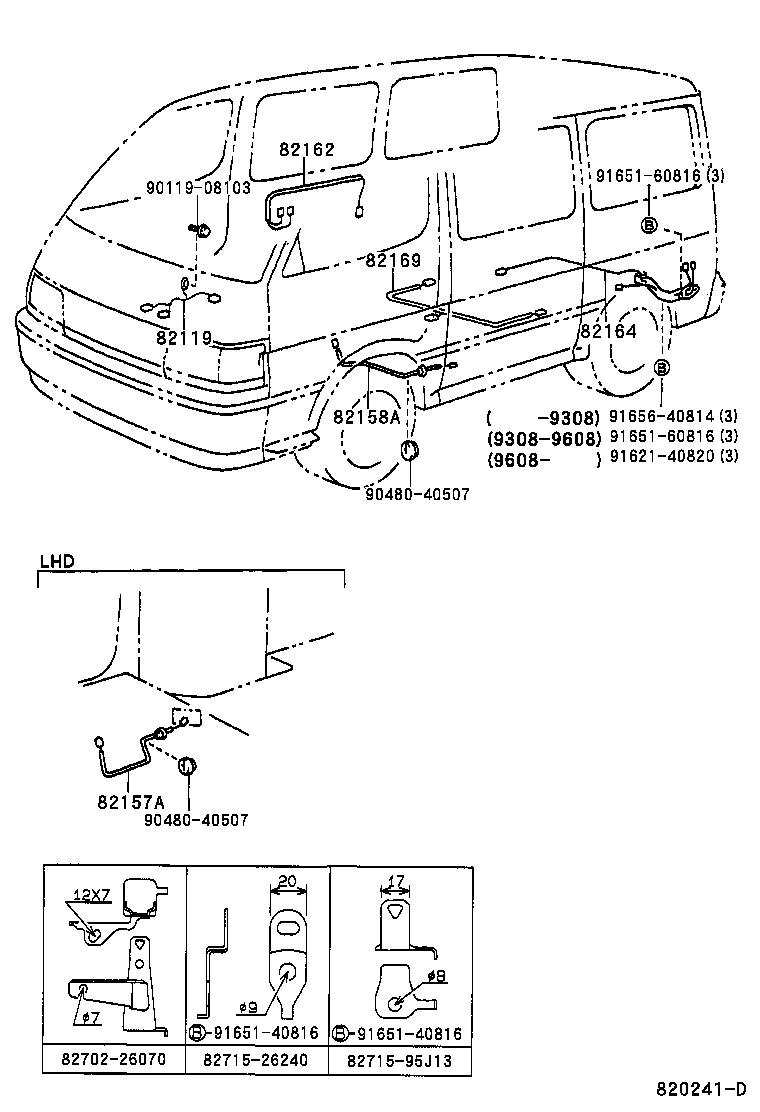

| FLOOR & FRAME WIRE ILLUST NO. 8 OF12(8908- )
 | |

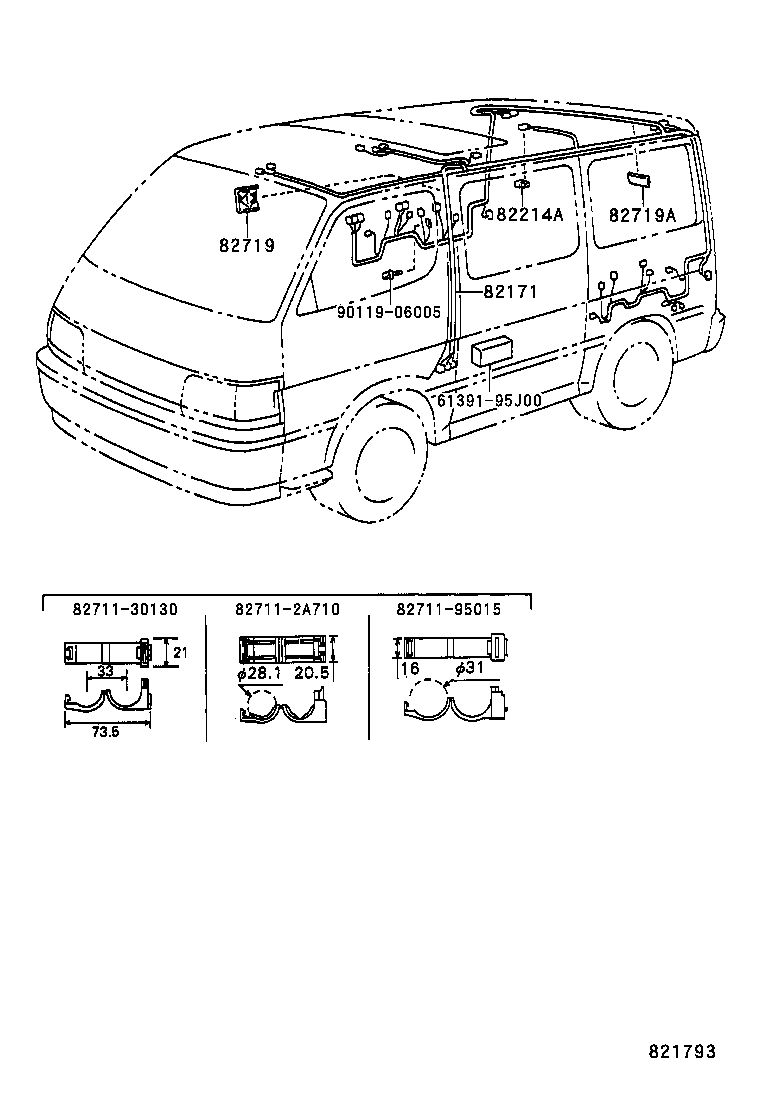

| ROOF WIRE ILLUST NO. 9 OF12(8908- )
 | |

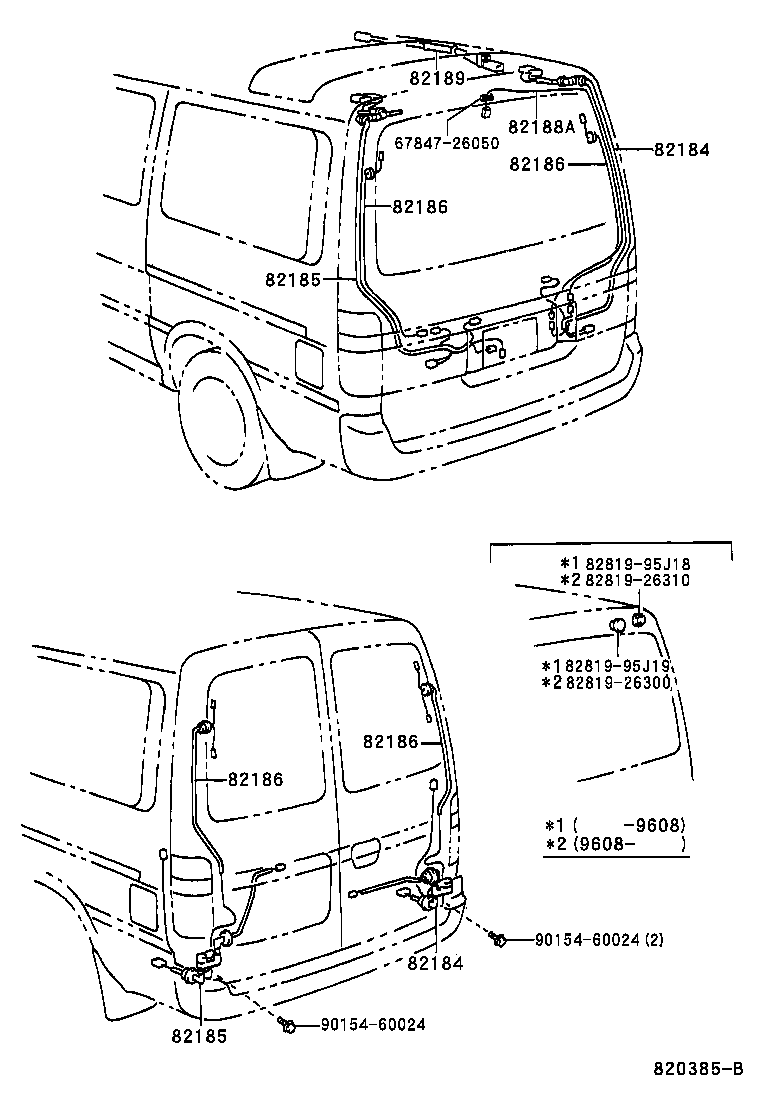

| BACK DOOR WIRE ILLUST NO.10 OF12(8908- )
 | |

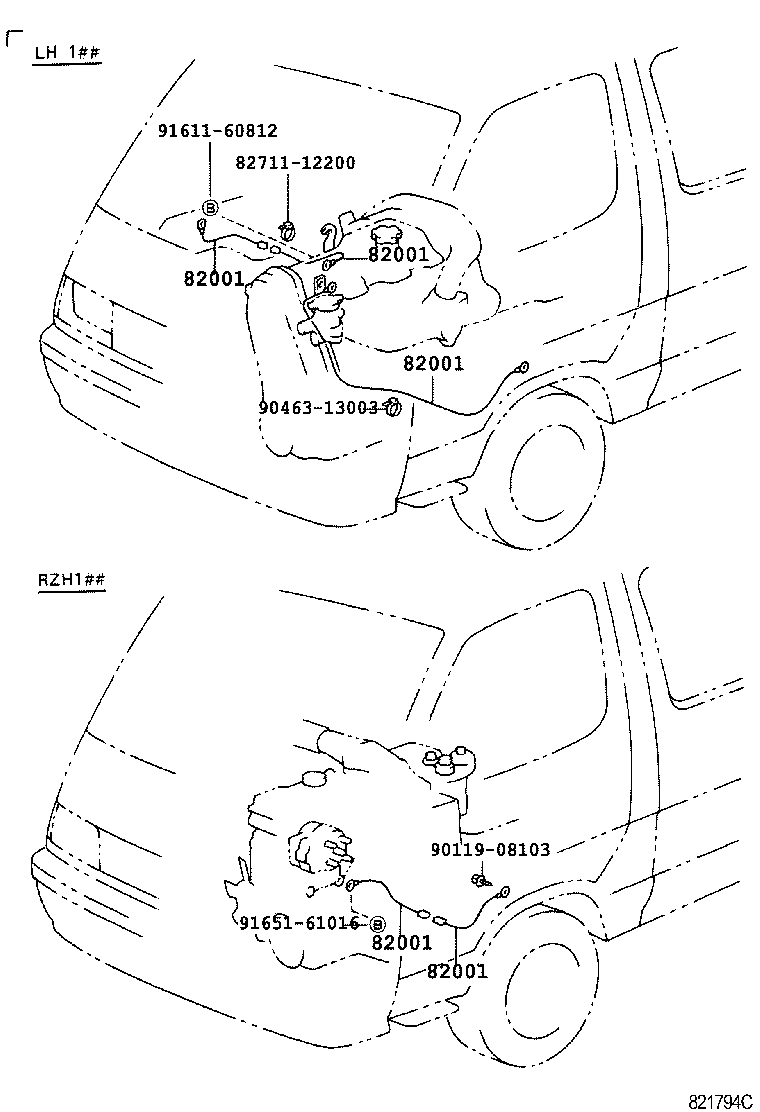

| CABLE BOND ILLUST NO.11 OF12(8908- )
 | |

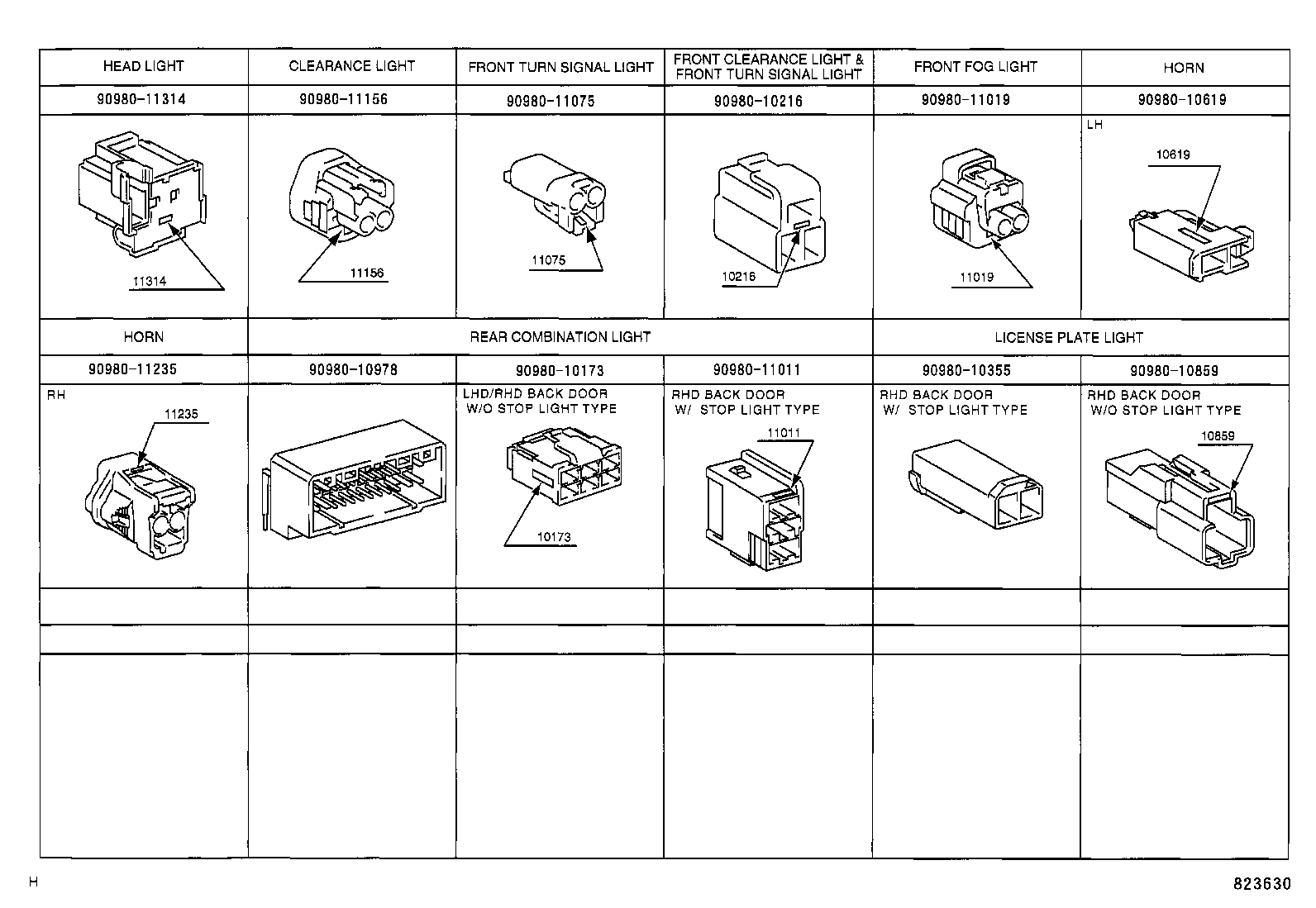

| CONNETOR ILLUST NO.12 OF12(8908- )
 |
|
Для вибору запчастини за номером на схемі збільште зображення. |
|
