РЕГІОН: Європа
> Автомобіль: HIACE VAN,COMMUTER 198908 200602 A2
> Модель: LH162R-SRMRS
> Група: КУЗОВ (3)
> Підгрупа: Паливний бак й патруби (7751)
Виберіть ДЕТАЛЬ:
| 69512A |
RETAINER, REAR DOOR LOCK CYLINDER | | 77011 |
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | | 77017B |
TUBE SUB-ASSY, FUEL TANK VENT | | 77018 |
VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | | 77023 |
FILTER SUB-ASSY, FUEL SUCTION TUBE | | 77026A |
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | | 77035 |
CABLE SUB-ASSY, FUEL LID LOCK CONTROL | | 77037 |
LOCK SUB-ASSY, FUEL FILLER OPENING LID | | 77051 |
LEVER SUB-ASSY, FUEL LID OPEN | | 77100 |
TANK ASSY, FUEL | | 77100A |
PLUG(FOR FUEL TANK) | | 77100B |
GASKET(FOR FUEL TANK) | | 77135 |
BRACKET, CHECK VALVE | | 77148 |
BRACKET, FUEL TUBE TO TANK | | 77169A |
GASKET, FUEL SUCTION TUBE SET | | 77178 |
GASKET, FUEL TANK FILLER PIPE, LOWER | | 77179A |
GASKET, FUEL TANK BREATHER TUBE | | 77201 |
PIPE SUB-ASSY, FUEL TANK INLET | | 77201A |
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | | 77213B |
HOSE, FUEL TANK TO FILLER PIPE | | 77251B |
TUBE, FUEL MAIN | | 77251C |
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | | 77251D |
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | | 77251E |
SHIELD, FUEL TANK INLET PIPE | | 77255D |
TUBE, FUEL RETURN | | 77255F |
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | | 77277A |
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | | 77295C |
GROMMET, FUEL TUBE | | 77295D |
GROMMET, FUEL TUBE | | 77310A |
CAP ASSY, FUEL TANK | | 77316 |
GASKET, FUEL TANK CAP | | 77350 |
LID ASSY, FUEL FILLER OPENING | | 77366 |
Пружина/фіксатор лючка бензобаку | | 77380 |
VALVE ASSY, FUEL CUT OFF | | 77397 |
PLATE, FUEL INLET PIPE SEAL | | 77420 |
VALVE ASSY, FUEL CUT OFF, NO.2 | | 77451 |
PROTECTOR, FUEL INLET HOSE | | 77701T |
VALVE, CHECK (FOR MAIN FUEL TANK) | | 77701U |
HOSE, FUEL (FOR CHECK VALVE) |
|
 | (8908-9608)
 | |
| TYPE B (9808-0008)
| |
| TYPE A (0008- )RZH105..STD , (0008- )RZH115..CBR
| |
| , (0008- )RZH115..12S , (0008- )RZH115..CIS,GCC..EFI
| |
| TYPE B (0008- )RZH114..15S..GL , (0008- )RZH115..
| |
| GEN..EFI , (0008- )LH154,RZH102,104,105,155..GL
| |
| ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,125,135,153 , (9907- )C
| |
| BR
| |
| (8908-9608)
| |
| TYPE B (9808-0008)
| |
| TYPE A (0008- )RZH105..STD , (0008- )RZH115..CBR
| |
| , (0008- )RZH115..12S , (0008- )RZH115..CIS,GCC..EFI
| |
| TYPE B (0008- )RZH114..15S..GL , (0008- )RZH115..
| |
| GEN..EFI , (0008- )LH154,RZH102,104,105,155..GL
| |
| ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,125,135,153 , (9907- )C
| |
| BR
| |
| ILLUST NO. 2 OF 2(8908-9907)RZH10#,11#,125,135,153 , (9907- )C
 | |
| BR
| |
| ILLUST NO. 2 OF 2(8908-9907)RZH10#,11#,125,135,153 , (9907- )C
| |
| BR
| |
| (8908- )LH10#,11#,125,154,16#,17#,184
 | |
| (9405- )RZH113..LHD..4D..GEN
 | |
| ILLUST NO. 1 OF 2(9907-0308)EFI
 | |
| ILLUST NO. 1 OF 2(0308- )EFI
 | |
| ILLUST NO. 2 OF 2(9907- )EFI
 |
|

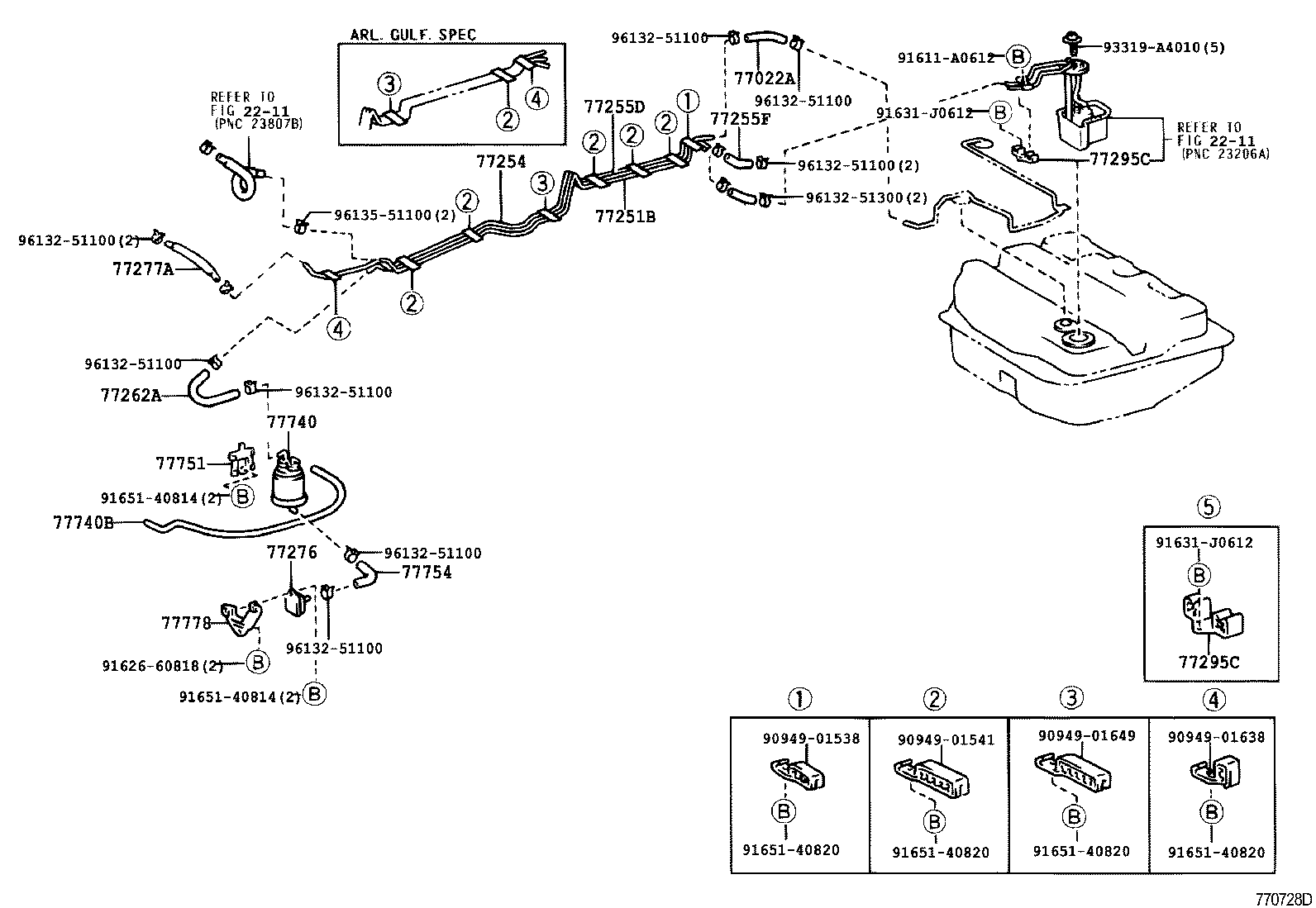

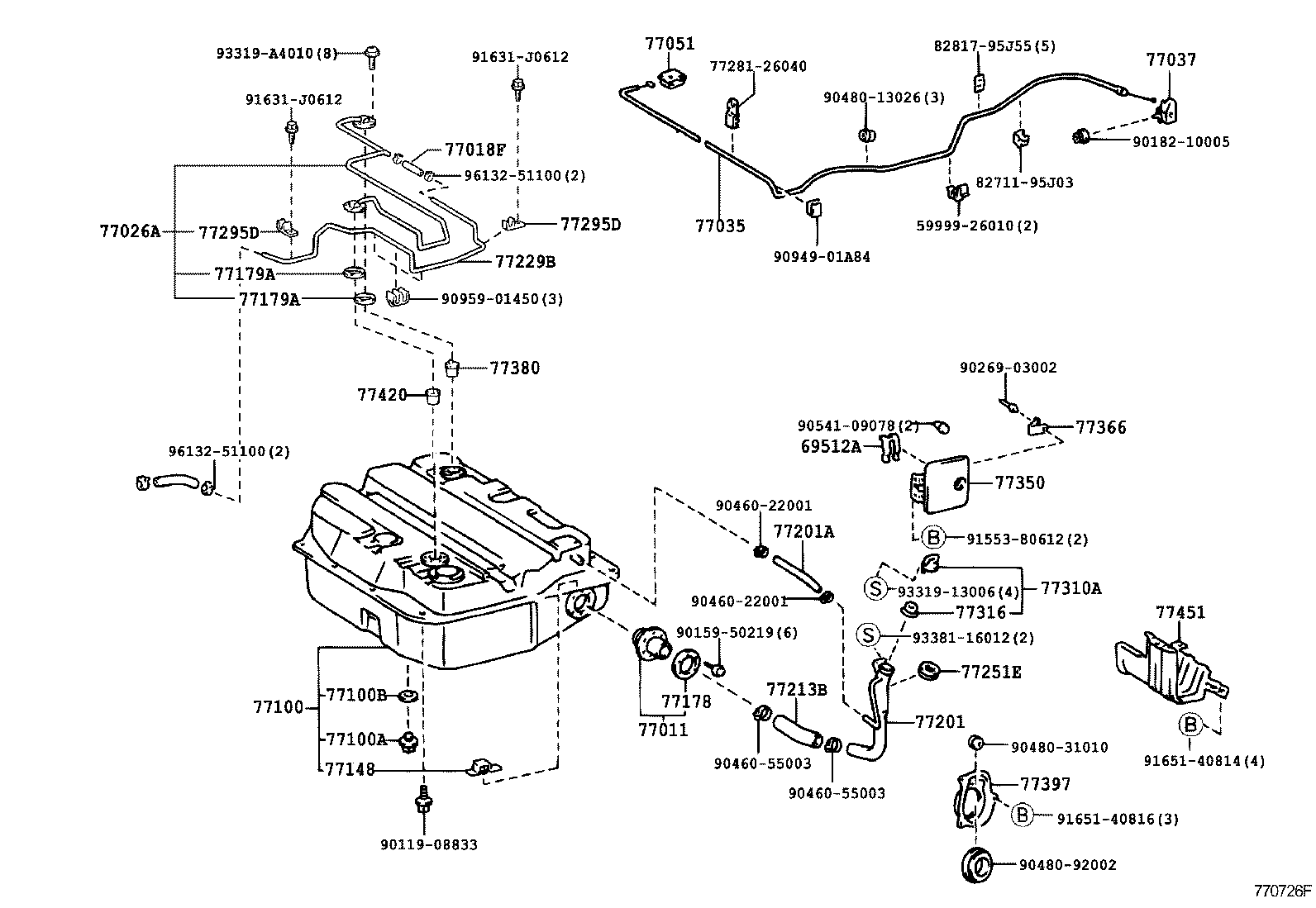

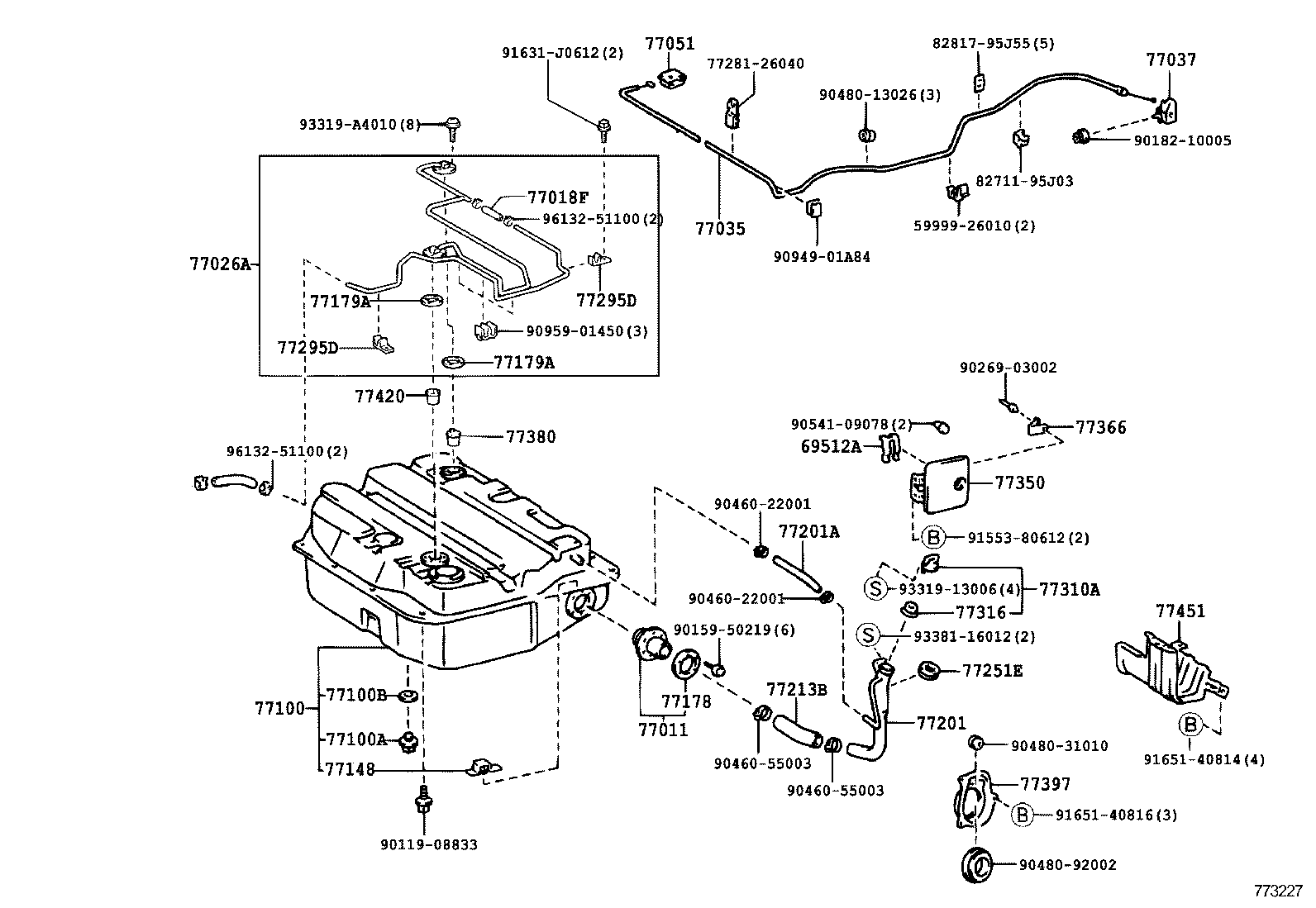

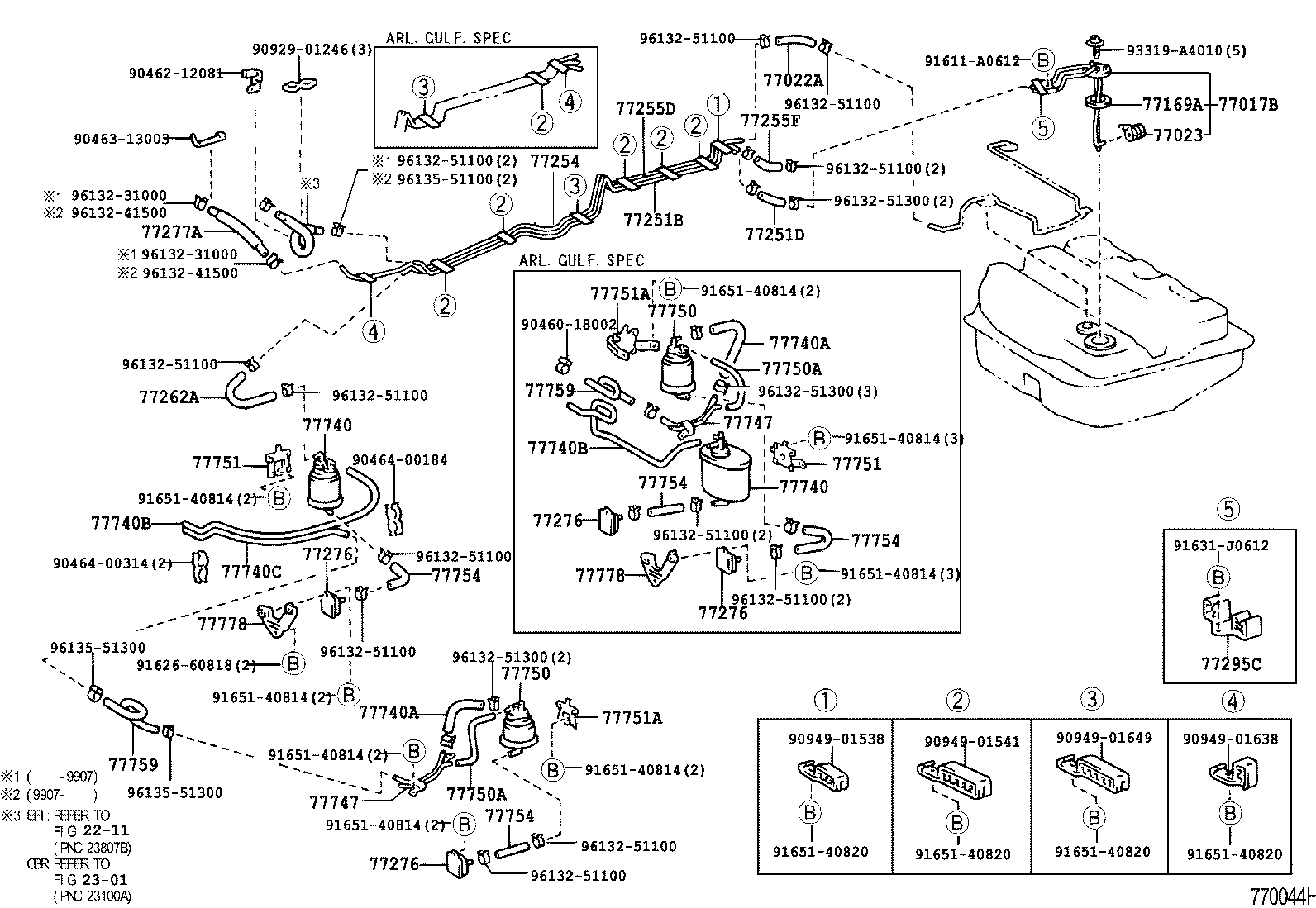

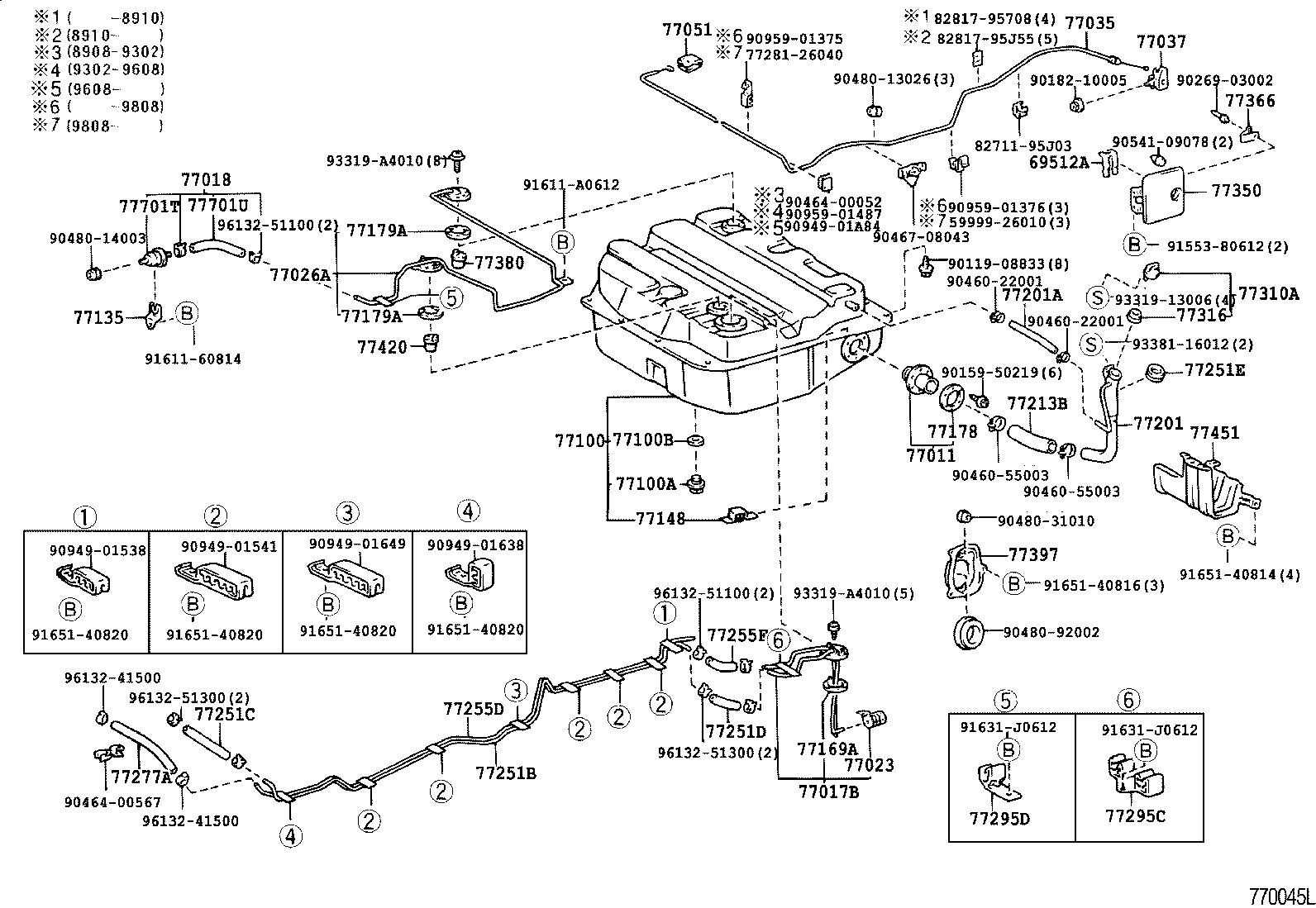

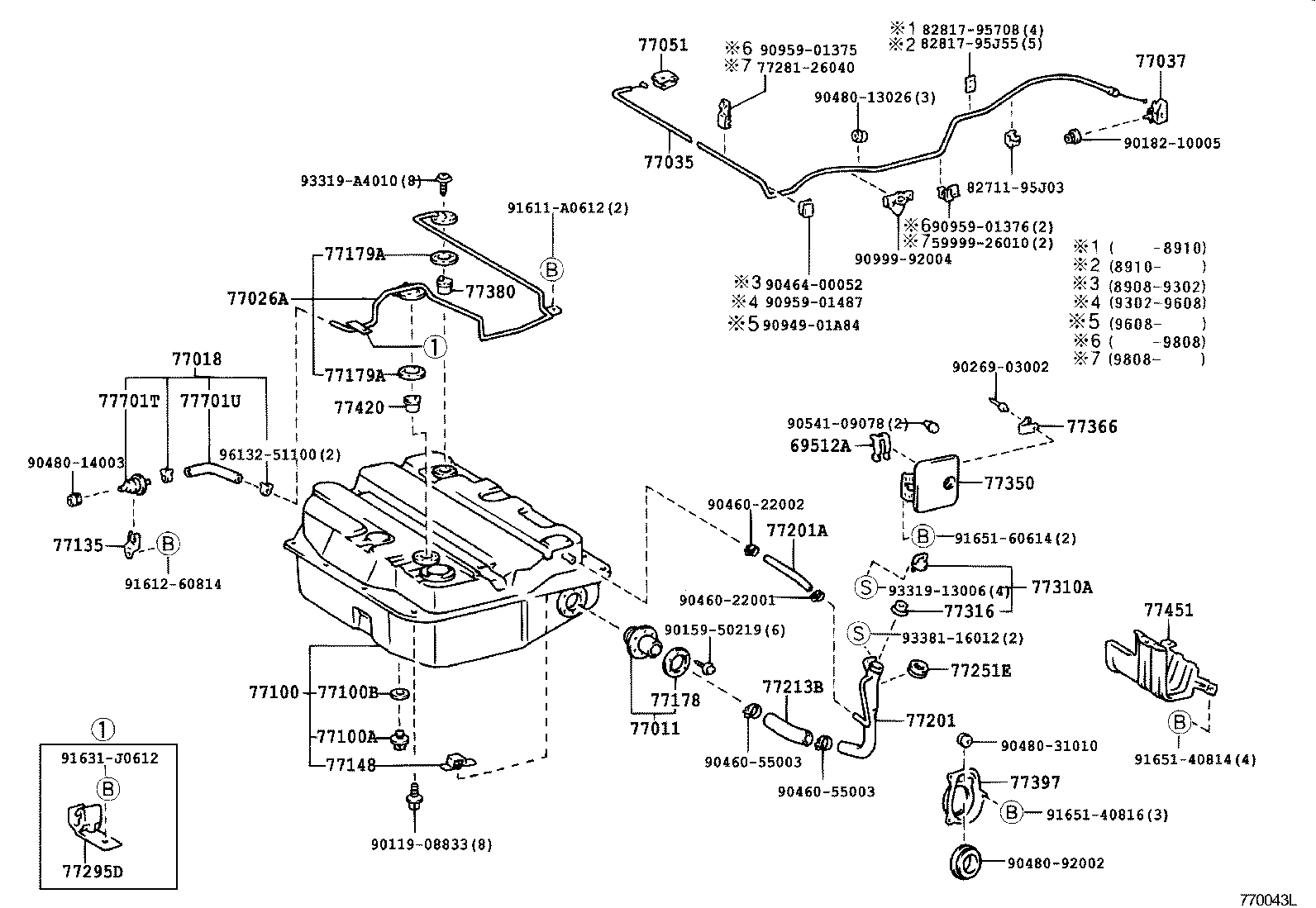

Для вибору запчастини за номером на схемі збільште зображення. |
|
|
|
