РЕГІОН: Європа
> Автомобіль: HIACE VAN,COMMUTER 198908 200602 A2
> Модель: RZH113L-RBMRS
> Група: ТРАНСМІСІЯ, ПІДВІСКА (2)
> Підгрупа: REAR AXLE HOUSING & DIFFERENTIAL (4101)
Виберіть ДЕТАЛЬ:
| 04412 |
GASKET KIT, REAR DIFFERENTIAL CARRIER | | 41101 |
CARRIER SUB-ASSY, DIFFERENTIAL, REAR | | 41110 |
CARRIER ASSY, DIFFERENTIAL, REAR | | 41110A |
BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | | 41114 |
BOLT, REAR DIFFERENTIAL BEARING CAP | | 41115 |
RING, DIFFERENTIAL OIL STORAGE | | 41201 |
FINAL GEAR KIT, DIFFERENTIAL, REAR | | 41201A |
BEARING (FOR REAR DRIVE PINION REAR) | | 41201B |
BEARING (FOR REAR DRIVE PINION FRONT) | | 41201C |
SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | | 41201D |
WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | | 41204 |
FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | | 41204B |
NUT (FOR REAR DRIVE PINION) | | 41214 |
SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | | 41222 |
PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | | 41222A |
BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | | 41231 |
SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | | 41252 |
DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | | 41301A |
BEARING(FOR REAR DIFFERENTIAL CASE) | | 41302 |
CASE SUB-ASSY, REAR DIFFERENTIAL | | 41315 |
NUT, REAR DIFFERENTIAL BEARING ADJUSTING | | 41316 |
LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | | 41331 |
GEAR, REAR DIFFERENTIAL SIDE | | 41341 |
PINION, REAR DIFFERENTIAL | | 41342 |
SHAFT, REAR DIFFERENTIAL PINION | | 41343 |
PIN, REAR DIFFERENTIAL PINION SHAFT | | 41351 |
WASHER, REAR DIFFERENTIAL PINION THRUST | | 41361 |
WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | | 42110 |
HOUSING ASSY, REAR AXLE | | 42110A |
PLUG (FOR REAR AXLE HOUSING FILLER) | | 42110B |
GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | | 42110C |
PLUG, BREATHER (FOR REAR AXLE HOUSING) | | 42110E |
PLUG (FOR REAR AXLE HOUSING DRAIN) | | 42139 |
DEFLECTOR, REAR AXLE HOUSING OIL | | 42181 |
GASKET, REAR DIFFERENTIAL CARRIER |
|

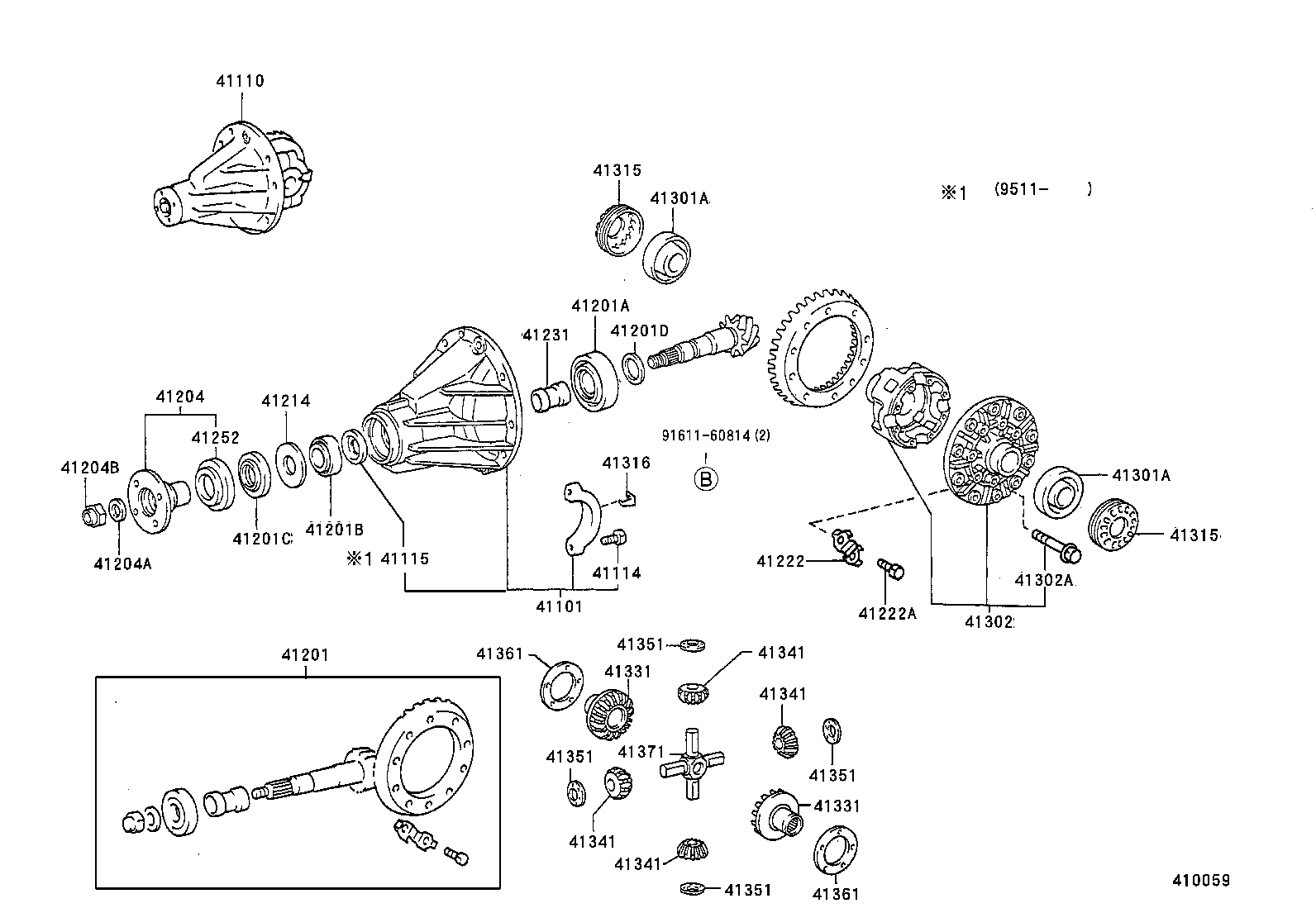

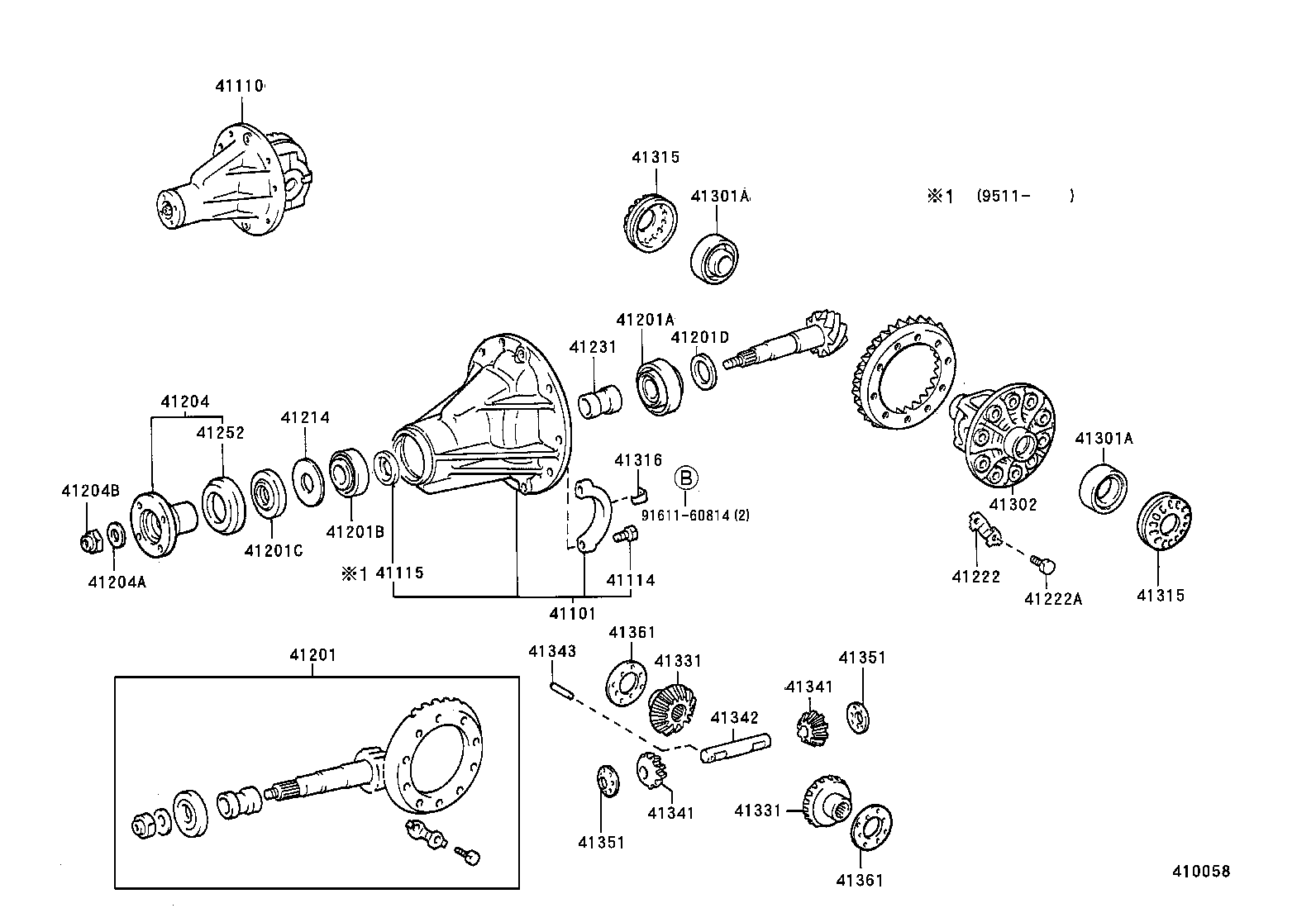

 | G142,G252,G282,G292(2PINION) ILLUST NO. 1 OF 2(8908- )
 | |
| G144,G284,G294(4PINION) ILLUST NO. 1 OF 2(8908-9508)
 | |

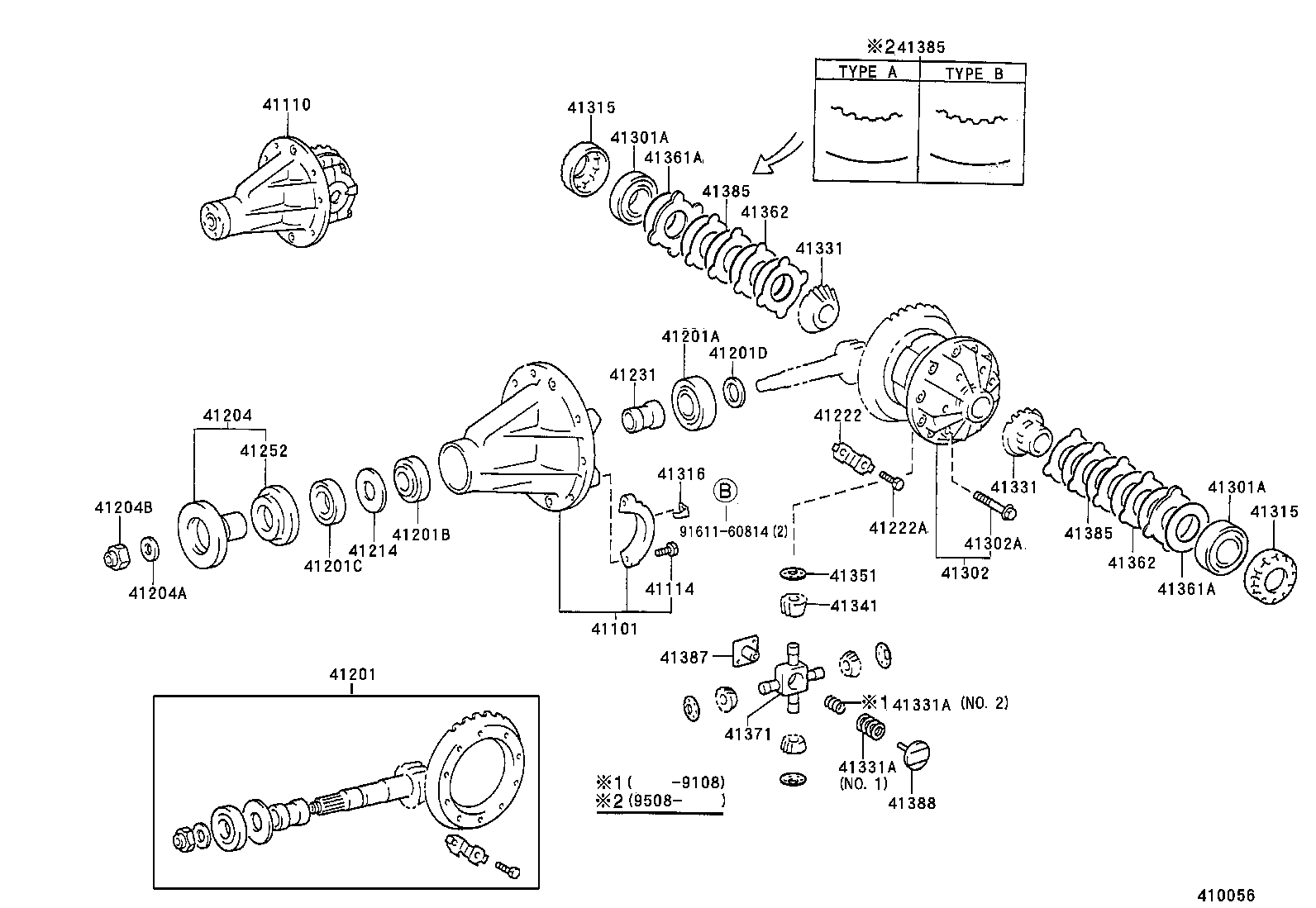

| LIMITED SLIP DIFFERENTIAL ILLUST NO. 1 OF 2(8908-9511)
 | |

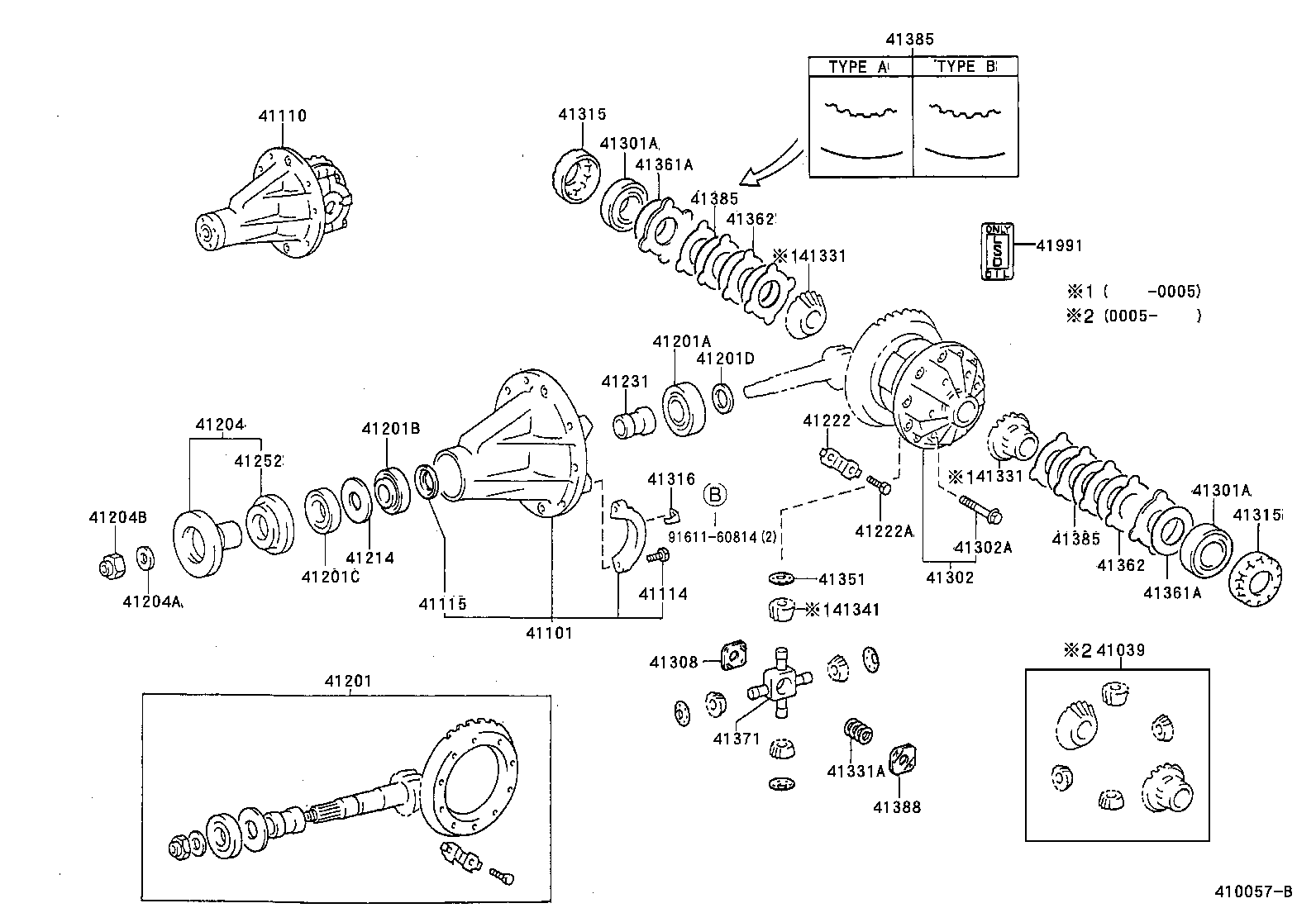

| LIMITED SLIP DIFFERENTIAL ILLUST NO. 1 OF 2(9511- )
 | |

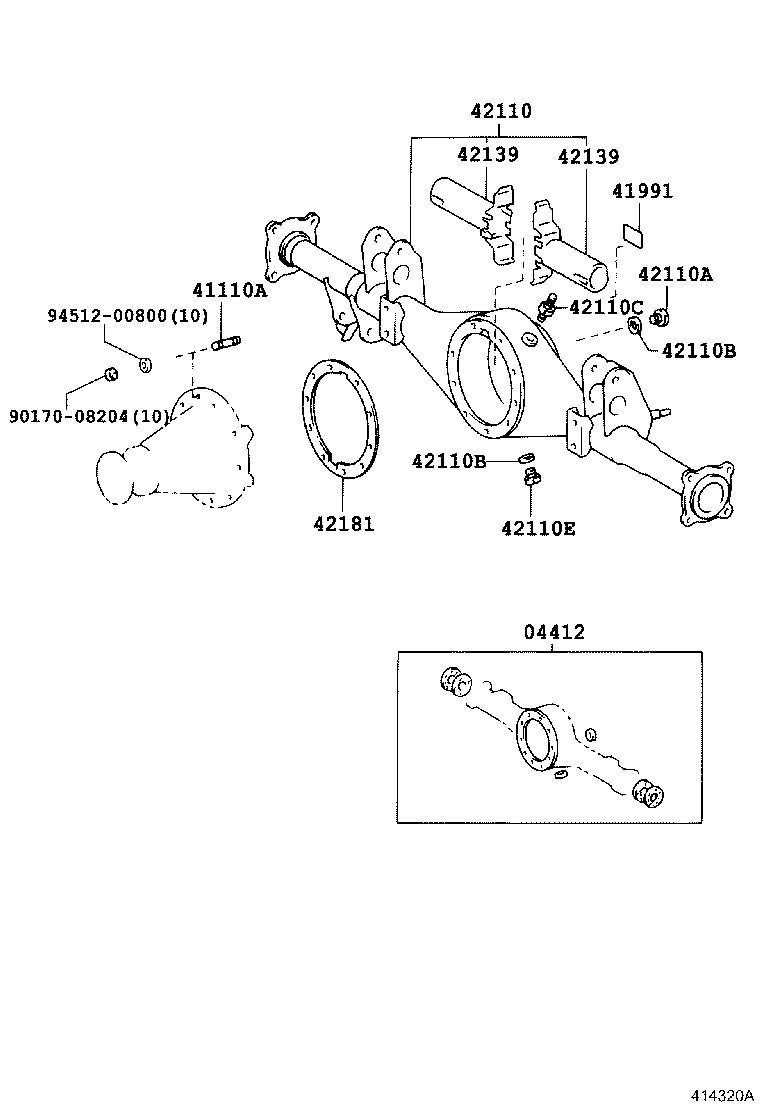

| ILLUST NO. 2 OF 2(8908- )
 |
|
Для вибору запчастини за номером на схемі збільште зображення. |
|
|
|
