РЕГІОН: Європа
> Автомобіль: HIACE VAN,COMMUTER 198908 200602 A2
> Модель: RZH113L-RBMRS
> Група: ТРАНСМІСІЯ, ПІДВІСКА (2)
> Підгрупа: Трубки гальмівної системи, кріплення (4708)
Виберіть ДЕТАЛЬ:
| 04477 |
BUSH & BOOT KIT, LOAD SENSING SPRING | | 31478D |
CAP, BLEEDER PLUG(FOR LSPV) | | 47311 |
TUBE, FRONT BRAKE, NO.1 | | 47311B |
WAY, NO.1(FOR FRONT BRAKE TUBE) | | 47313 |
TUBE, FRONT BRAKE, NO.3 | | 47313A |
HOSE, FLEXIBLE, NO.1(FOR FRONT) | | 47313B |
BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | | 47313P |
GASKET(FOR FRONT FLEXIBLE HOSE) | | 47314 |
TUBE, FRONT BRAKE, NO.4 | | 47315 |
TUBE, FRONT BRAKE, NO.5 | | 47316 |
TUBE, FRONT BRAKE, NO.6 | | 47316A |
HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | | 47321 |
TUBE, REAR BRAKE, NO.1 | | 47321D |
WAY, NO.1(FOR REAR BRAKE TUBE) | | 47322B |
WAY, NO.2(FOR REAR BRAKE TUBE) | | 47323 |
TUBE, REAR BRAKE, NO.3 | | 47324 |
TUBE, REAR BRAKE, NO.4 | | 47325 |
TUBE, REAR BRAKE, NO.5 | | 47326 |
TUBE, REAR BRAKE, NO.6 | | 47327 |
TUBE, REAR BRAKE, NO.7 | | 47351B |
BRACKET, FLEXIBLE HOSE, NO.1 | | 47378 |
PROTECTOR, BRAKE TUBE | | 47910 |
VALVE ASSY, LOAD SENSING PROPORTIONING | | 47910B |
PLUG, BLEEDER | | 47920 |
SPRING ASSY, LOAD SENSING | | 47920A |
COLLAR(FOR LOAD SENSING SPRING) | | 47920B |
CLIP(FOR LOAD SENSING VALVE BOOT) | | 47920C |
WASHER(FOR LOAD SENSING SPRING) | | 47931 |
BRACKET, LOAD SENSING VALVE | | 47933 |
BRACKET, LOAD SENSING SHACKLE, NO.1 | | 47935 |
SHACKLE, LOAD SENSING SPRING, NO.1 | | 47935A |
COLLAR(FOR LOAD SENSING SPRING SHACKLE) | | 47935B |
BUSH(FOR LOAD SENSING SPRING SHACKLE) | | 47936 |
SHACKLE, LOAD SENSING SPRING, NO.2 | | 47937 |
PLATE, LOAD SENSING VALVE SET | | 47938 |
INSULATOR, LOAD SENSING SPRING SHACKLE HAET |
|
 | ILLUST NO. 1 OF 3(8908-9308)
 | |
| ILLUST NO. 1 OF 3(8908-9308)
 | |
| W/O(ABS) ILLUST NO. 1 OF 3(9308- )LH102,103,11#,125,162,172,174,184,RZH
 | |
| 10#,11#,125..RHD
| |
| W/O(ABS) ILLUST NO. 1 OF 3(9308- )LH102,104,105,11#,154,164,172,174,RZH
 | |
| 10#,11#,155..LHD
| |
| W/O(ABS) ILLUST NO. 1 OF 3(9808- )LH166,176
 | |
| W(ABS) ILLUST NO. 1 OF 3(9808- )GCC , (0108- )ARL
 | |
| W(ABS) ILLUST NO. 1 OF 3(9808- )GCC , (0108- )ARL
| |
| W(ABS) ILLUST NO. 1 OF 3(0008- )LH154,RZH155 , (0208- )RZH153
 | |
| W(ABS) ILLUST NO. 1 OF 3(0008- )LH154,RZH155 , (0208- )RZH153
| |
| W(ABS) ILLUST NO. 2 OF 3(9808- )GCC , (0008- )RZH155..GEN , (0108-
 | |
| )LH172..5F..ARL , (0108- )LH162,184,RZH103,113,125..ARL , (0208- )RZH153
| |
| W(ABS) ILLUST NO. 2 OF 3(9808- )GCC , (0008- )RZH155..GEN , (0108-
| |
| )LH172..5F..ARL , (0108- )LH162,184,RZH103,113,125..ARL , (0208- )RZH153
| |
| W(ABS) ILLUST NO. 2 OF 3(9808- )GCC , (0008- )RZH155..GEN , (0108-
| |
| )LH172..5F..ARL , (0108- )LH162,184,RZH103,113,125..ARL , (0208- )RZH153
| |
| W(ABS) ILLUST NO. 2 OF 3(9808- )GCC , (0008- )RZH155..GEN , (0108-
| |
| )LH172..5F..ARL , (0108- )LH162,184,RZH103,113,125..ARL , (0208- )RZH153
| |
| W(LSPV) ILLUST NO. 3 OF 3(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,
 | |
| 125
| |
| (8908- )
 | |
| ILLUST NO. 2 OF 2(8908-9808)RZH10#,11#..LHD
| |
| ILLUST NO. 2 OF 2(8908-9808)RZH125
| |
| (9808- )LH102,104,105,11#,154,164,166,17#..LH
| |
| D
| |
| (9808- )LH103,11#,125,162,172,174,184..RHD
| |
| W/O(ABS) (9611- )RZH135,15#
|
|

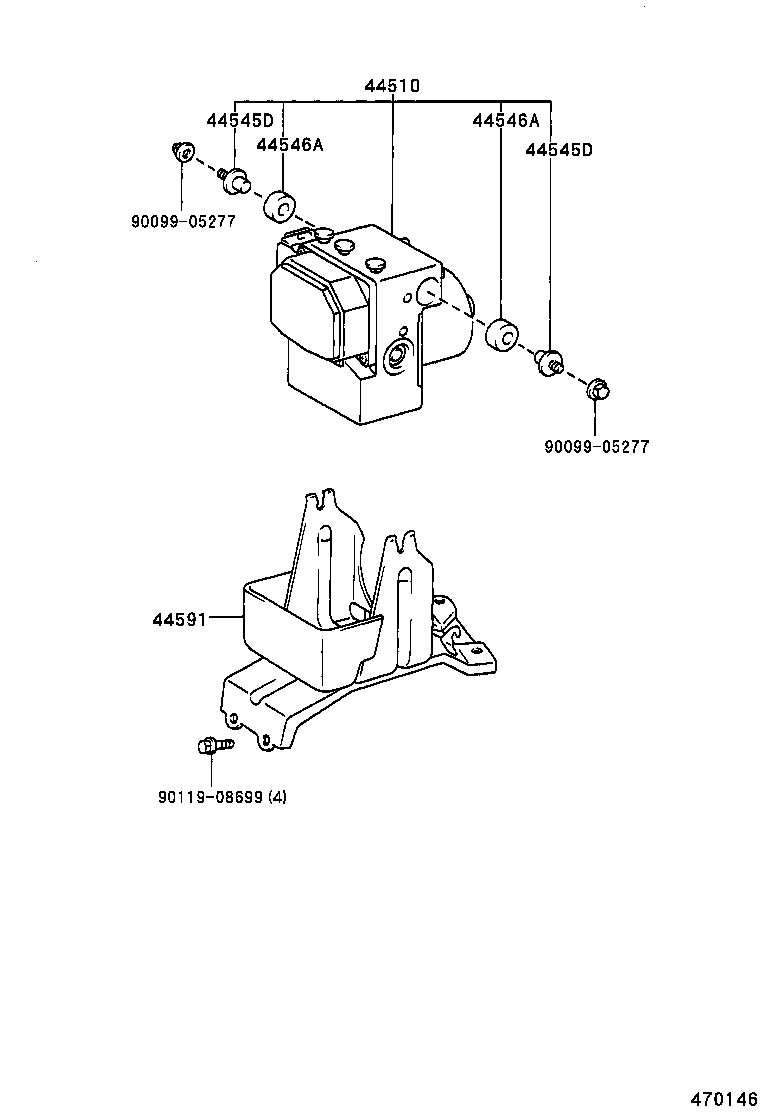

Для вибору запчастини за номером на схемі збільште зображення. |
|
|
|
