РЕГІОН: Європа
> Автомобіль: HIACE VAN,COMMUTER 198908 200602 A2
> Модель: RZH113R-RRMRSQ
> Група: КУЗОВ (3)
> Підгрупа: Задня частина підлоги - панель та компоненти (5852)
Виберіть ДЕТАЛЬ:
| 57023 |
MEMBER SUB-ASSY, REAR SIDE, RH | | 57024 |
MEMBER SUB-ASSY, REAR SIDE, LH | | 57071A |
HANGER SUB-ASSY, REAR SPRING, FRONT, RH | | 57072A |
HANGER SUB-ASSY, REAR SPRING, FRONT, LH | | 57078 |
MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | | 57079 |
MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | | 57307B |
OUTRIGGER SUB-ASSY, NO.4 RH | | 57308B |
OUTRIGGER SUB-ASSY, NO.4 LH | | 57311 |
OUTRIGGER, NO.1 RH | | 57361A |
COVER, NO.2 OUTERIGGER HOLE | | 57362A |
PACKING, NO.2 OUTRIGGER HOLE COVER | | 57413 |
RAIL, FLOOR SIDE, CENTER RH | | 57414 |
RAIL, FLOOR SIDE, CENTER LH | | 57415 |
RAIL, FLOOR SIDE, REAR RH | | 57416 |
RAIL, FLOOR SIDE, REAR LH | | 57515 |
BRACKET, PARKING BRAKE, RH | | 57617A |
RETAINER, EXHAUST PIPE BRACKET | | 57652C |
MEMBER, REAR FLOOR CROSS, NO.1 | | 57653D |
MEMBER, REAR FLOOR CROSS, NO.2 | | 57654B |
MEMBER, REAR FLOOR CROSS, NO.3 | | 57656C |
MEMBER, REAR FLOOR CROOS, NO.5 | | 57657B |
MEMBER, REAR FLOOR CROSS, NO.6 | | 57657C |
CROSSMEMBER, REAR FLOOR, NO.6 | | 57658 |
MEMBER, REAR FLOOR CROSS, NO.7 | | 57688A |
REINFORCEMENT, REAR FLOOR CROSSMEMBER | | 57691 |
BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | | 57692A |
BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | | 57693B |
BRACE, REAR FLOOR NO.6 CROSSMEMBER | | 57695A |
EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | | 57696A |
EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | | 57699A |
RETAINER, FUEL TANK SET BAND | | 57767 |
RETAINER, FUEL TANK BAND | | 58022A |
REINFORCEMENT SUB-ASSY, HEADER PANEL | | 58106 |
BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | | 58194 |
RETAINER, ENGINE COVER HINGE | | 58207C |
COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | | 58209B |
COVER SUB-ASSY, BATTERY SERVICE HOLE | | 58221A |
PANEL, HEADER | | 58223F |
REINFORCEMENT, HEADER PANEL, NO.2 | | 58266B |
BRACKET, FUEL TUBE CLAMP | | 58273C |
REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | | 58304B |
STEP SUB-ASSY, REAR FLOOR, LH | | 58307H |
BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | | 58311 |
PAN, REAR FLOOR | | 58445D |
LOCK, BATTERY SERVICE HOLE COVER | | 58446C |
PROTECTOR, BATTERY | | 58449B |
PACKING, BATTERY SERVICE HOLE COVER | | 58450A |
PACKING, BATTERY SERVICE HOLE COVER | | 58451B |
COVER, AIR CLEANER SERVICE HOLE | | 58458C |
KNOB, BATTERY SERVICE HOLE COVER | | 58465B |
PACKING, TRANSMISSION SERVICE HOLE COVER | | 58466E |
SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | | 59363 |
RETAINER, REAR SEAT, NO.1 C | | 65557 |
RETAINER, ROPE HOOK | | 66311 |
HOOK, ROPE |
|

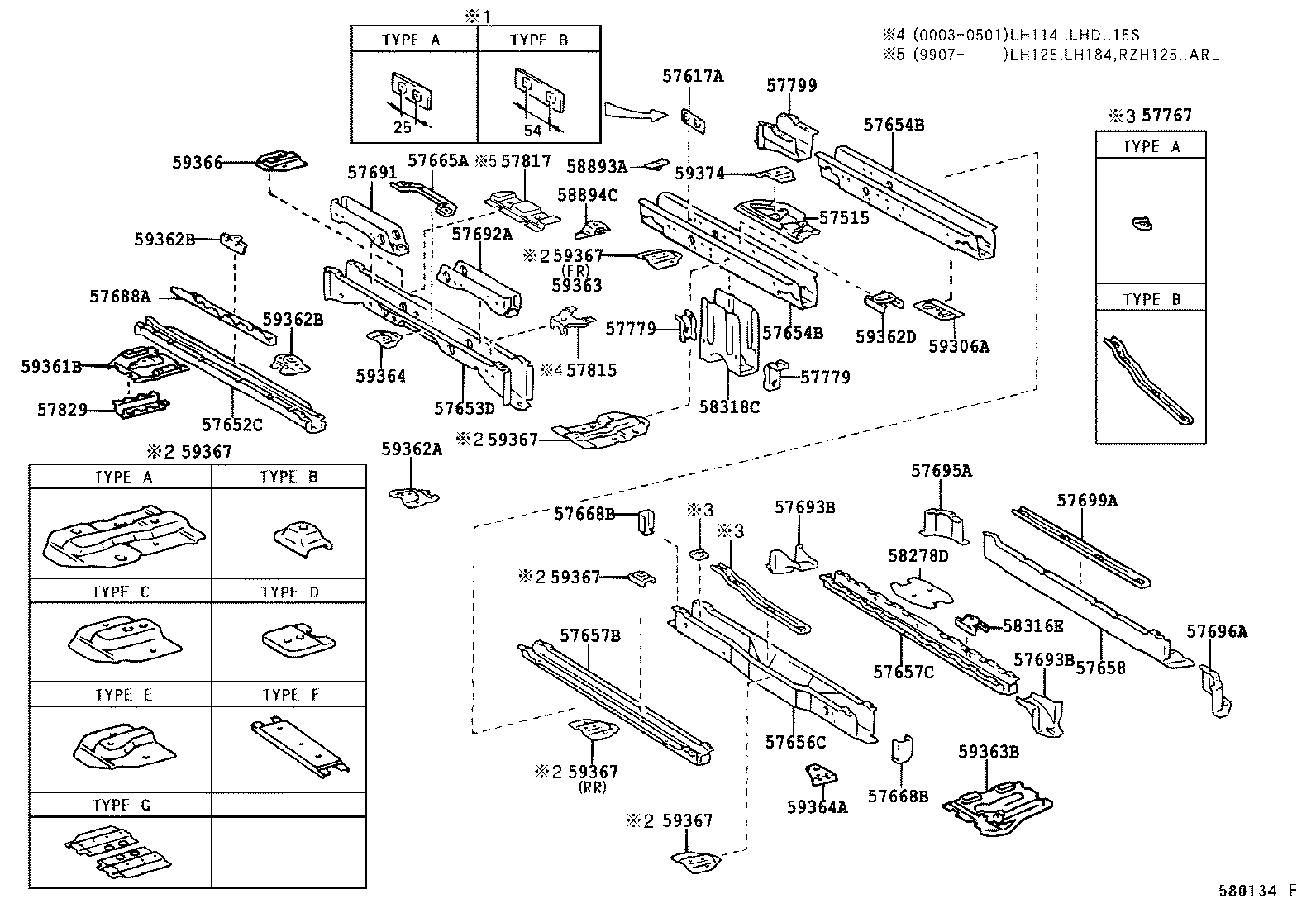

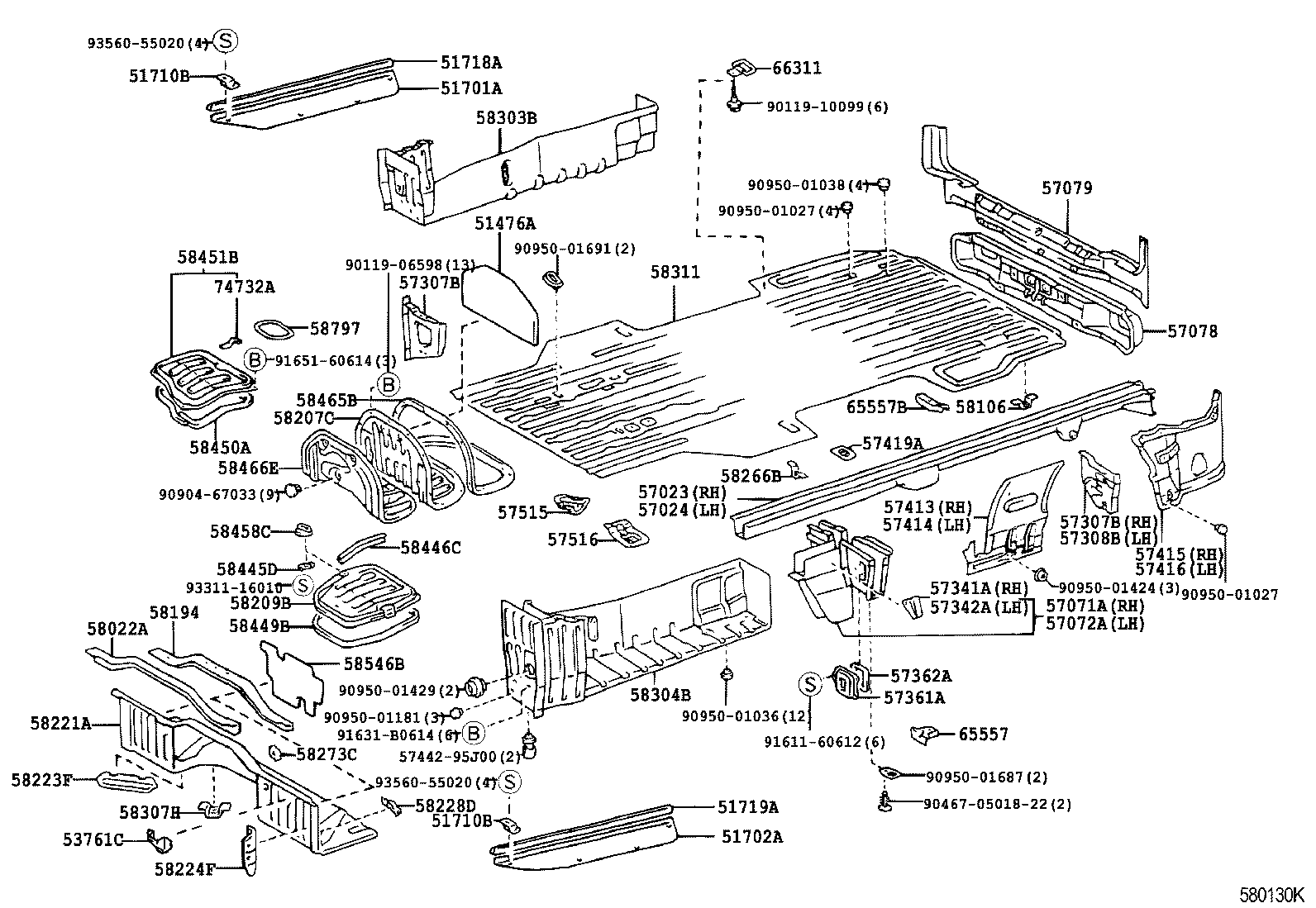

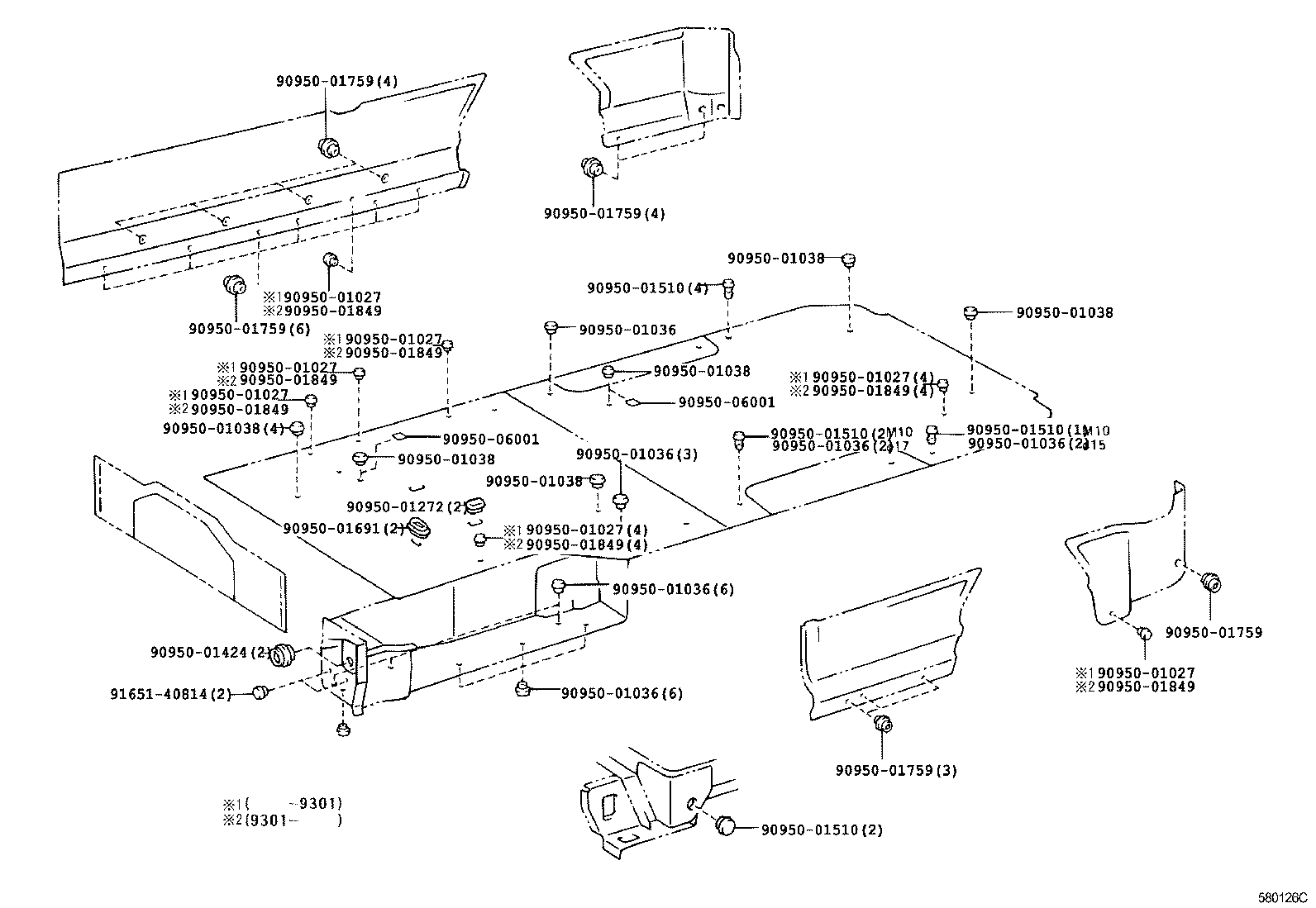

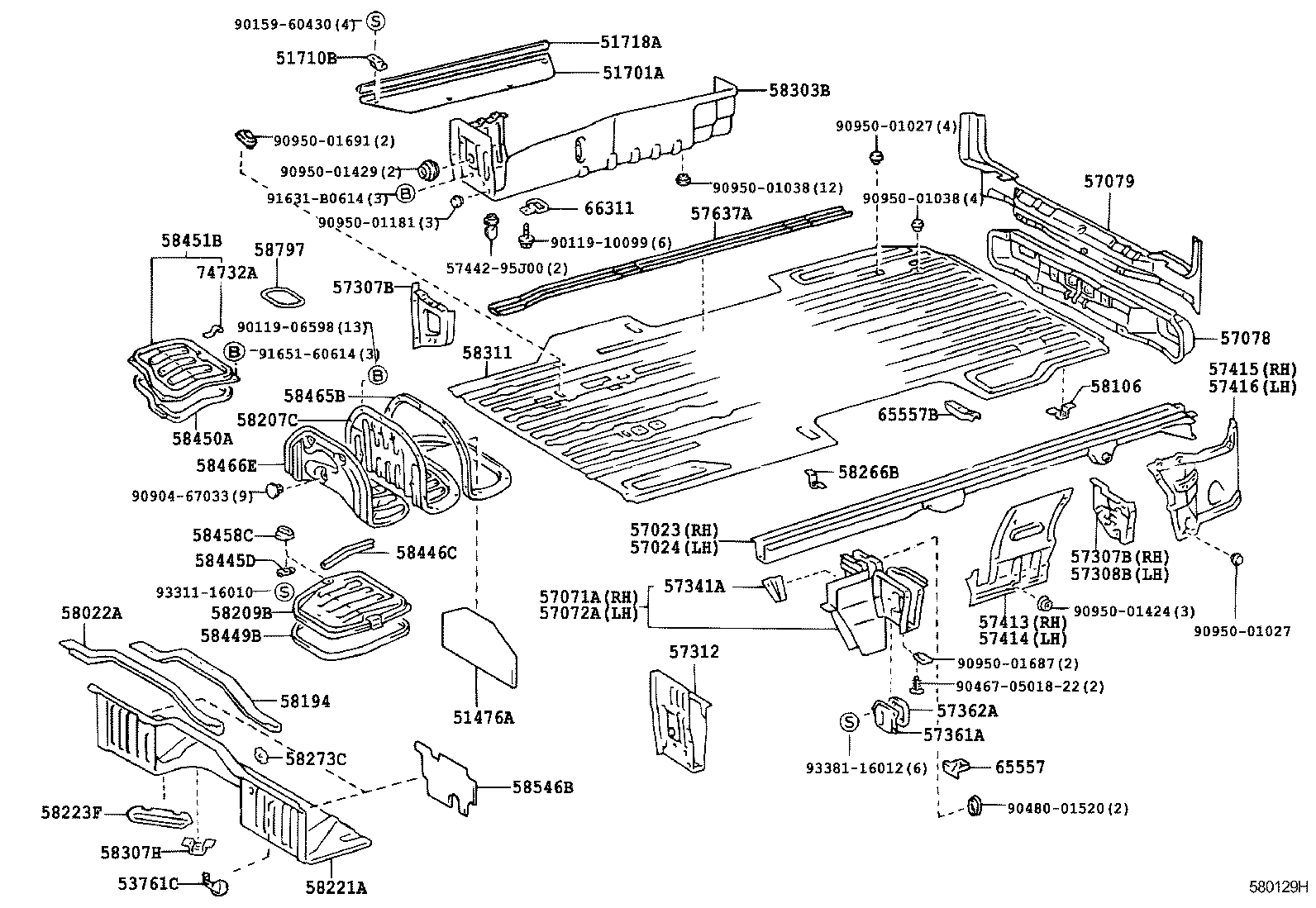

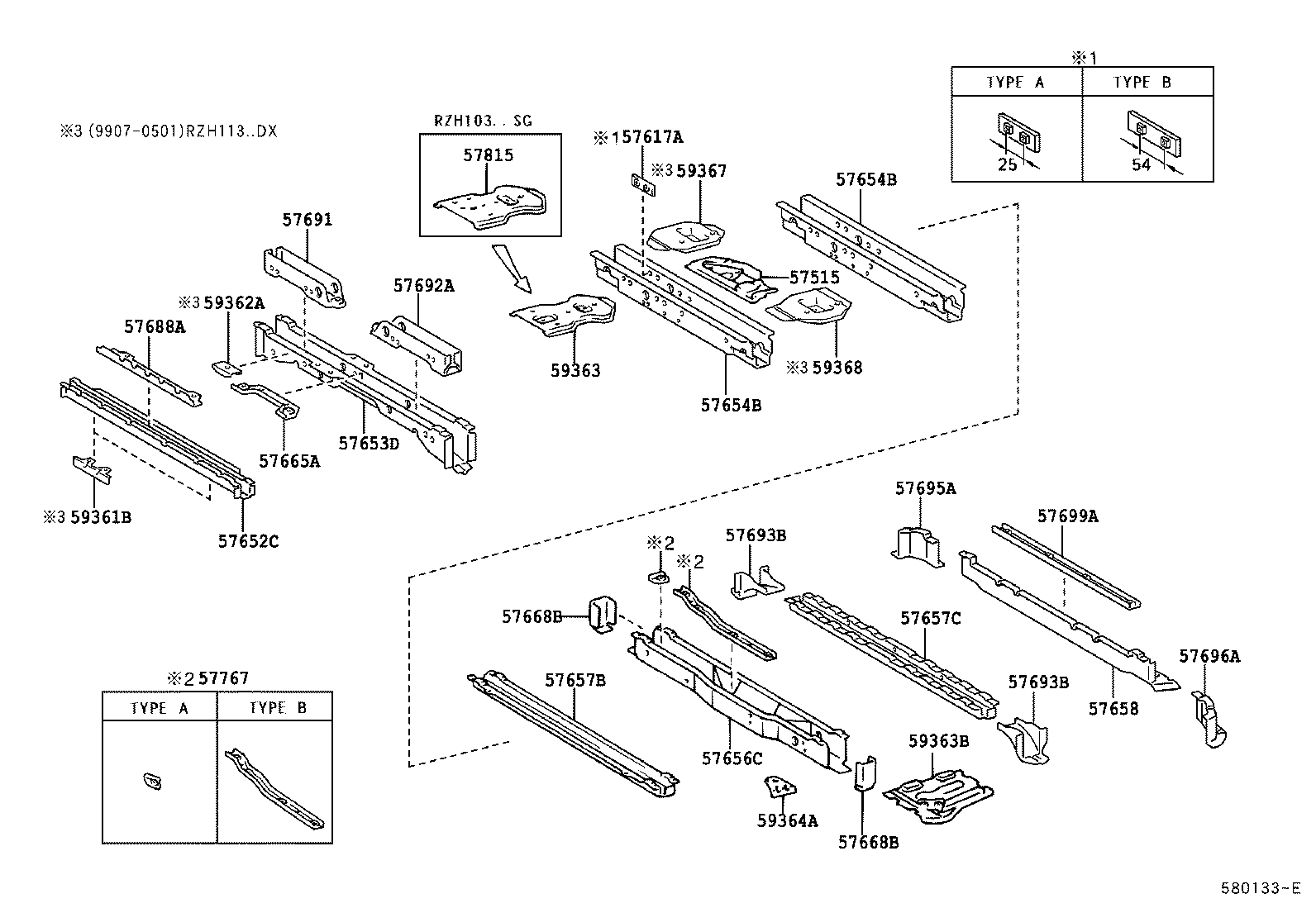

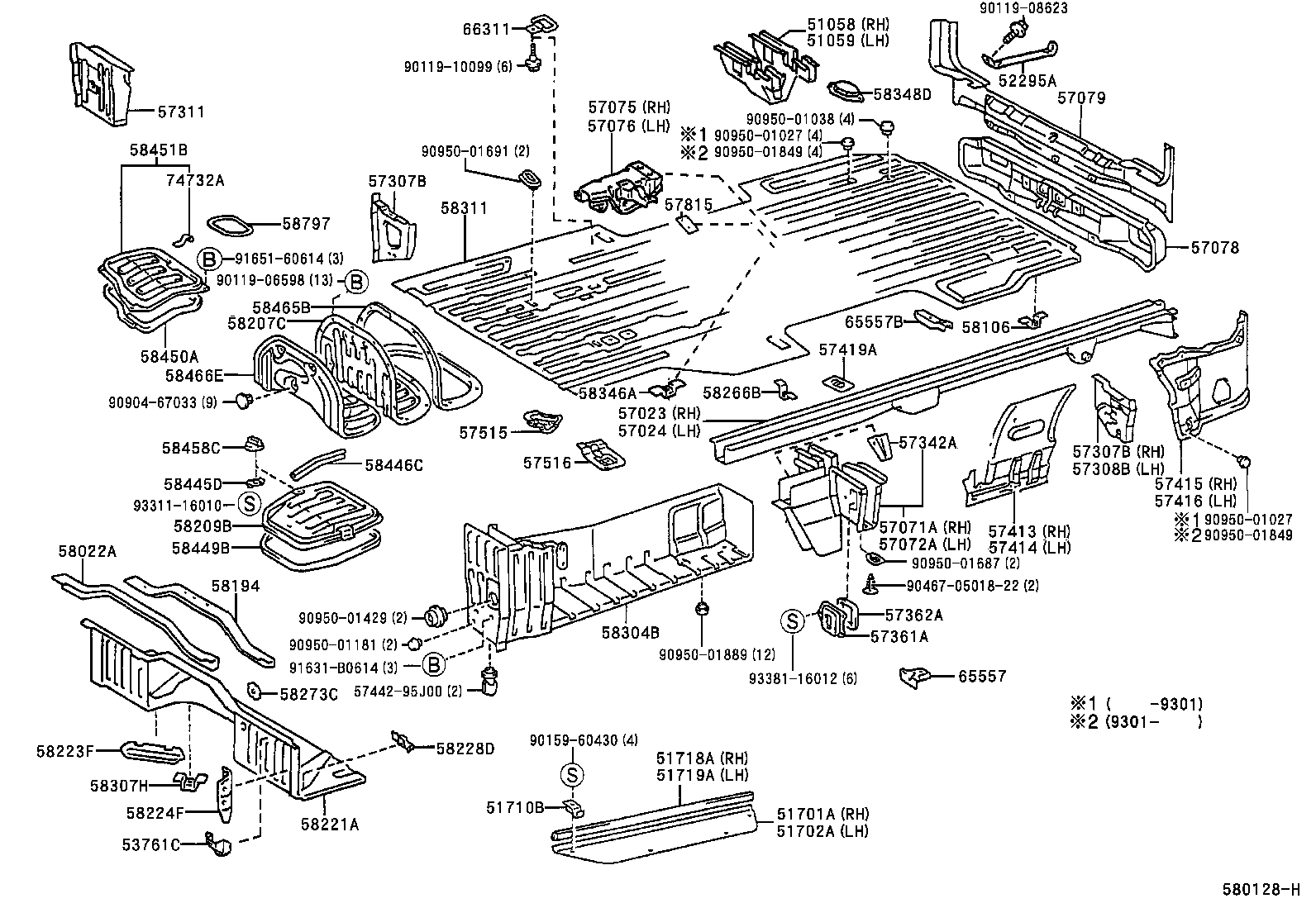

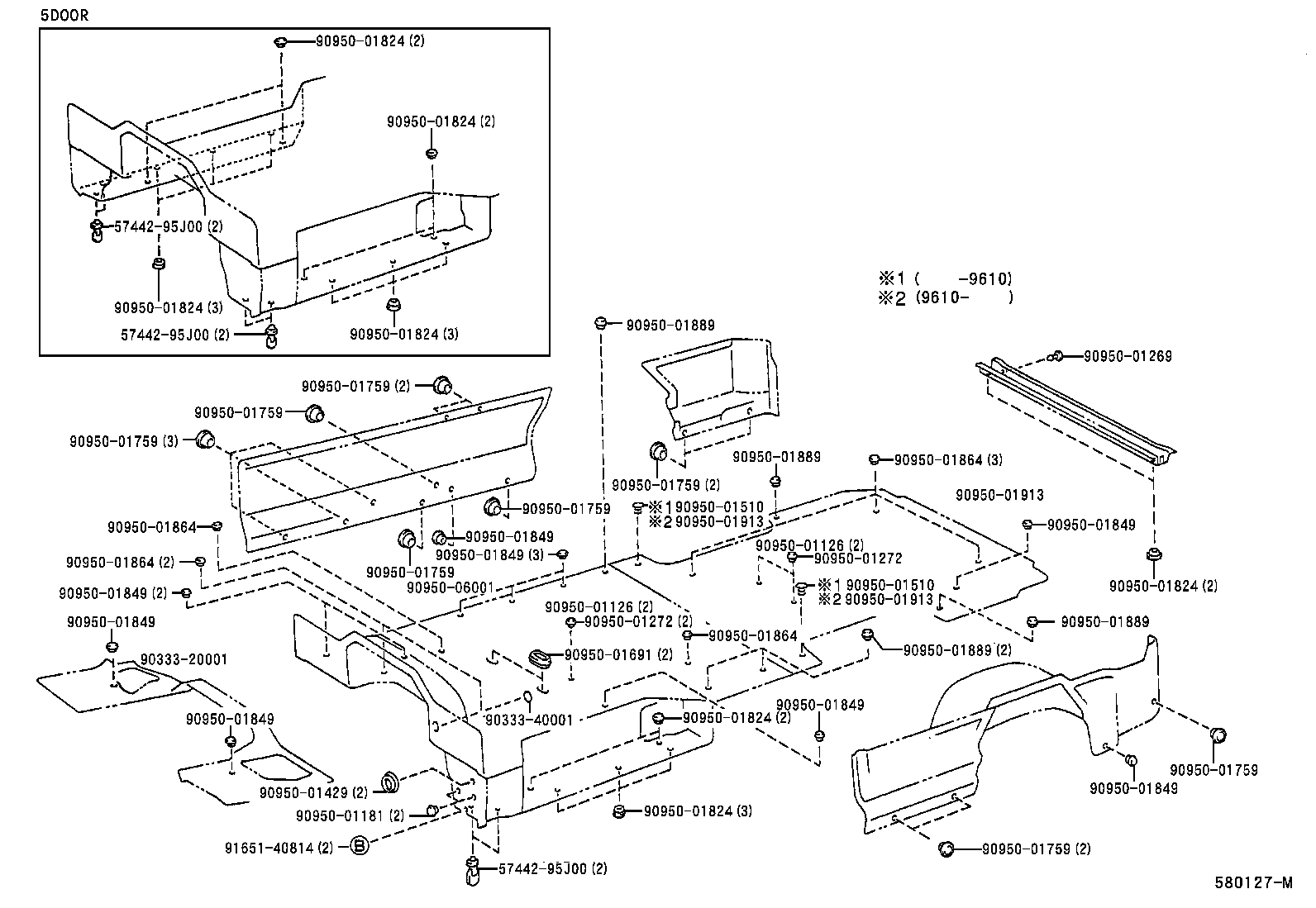

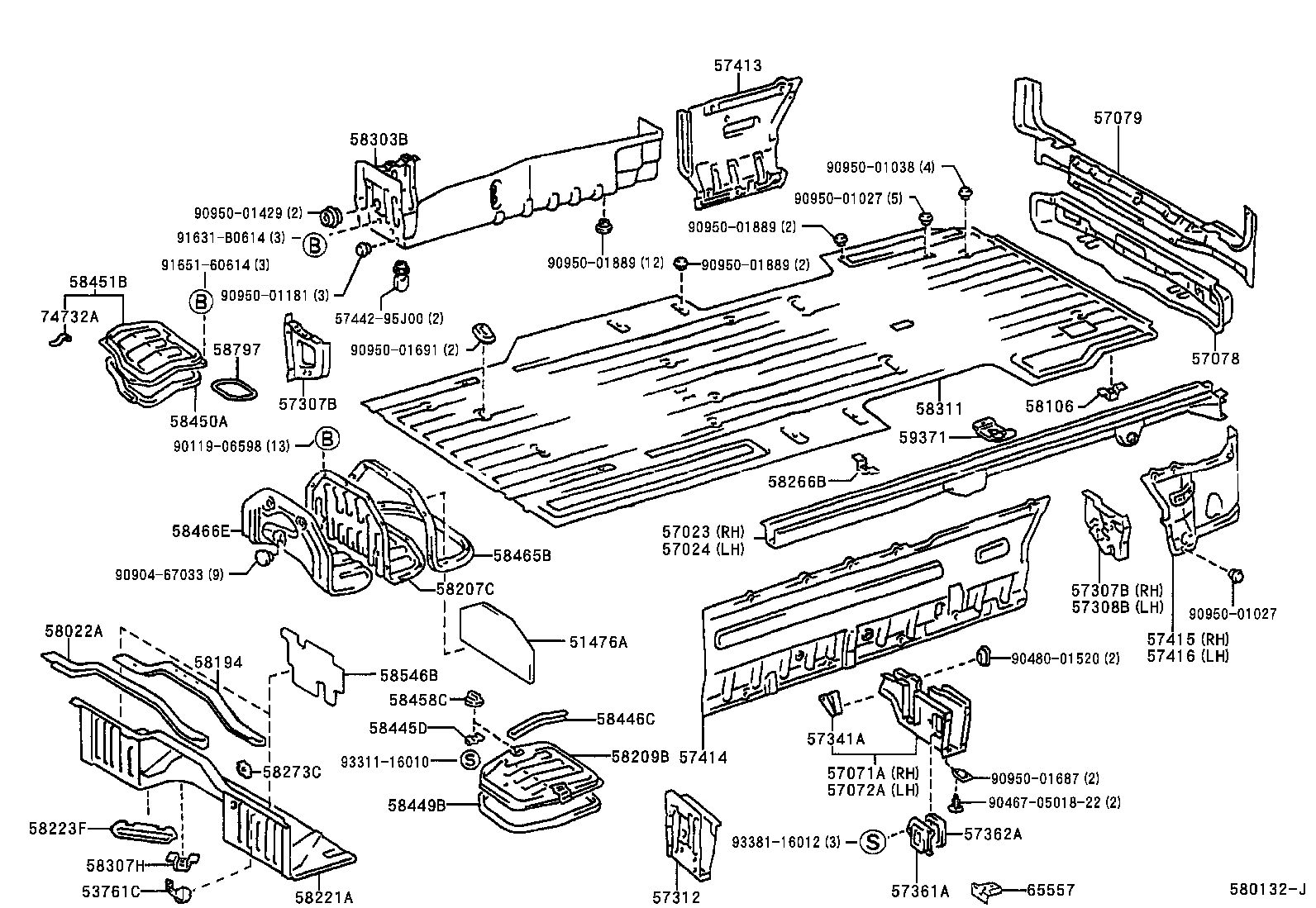

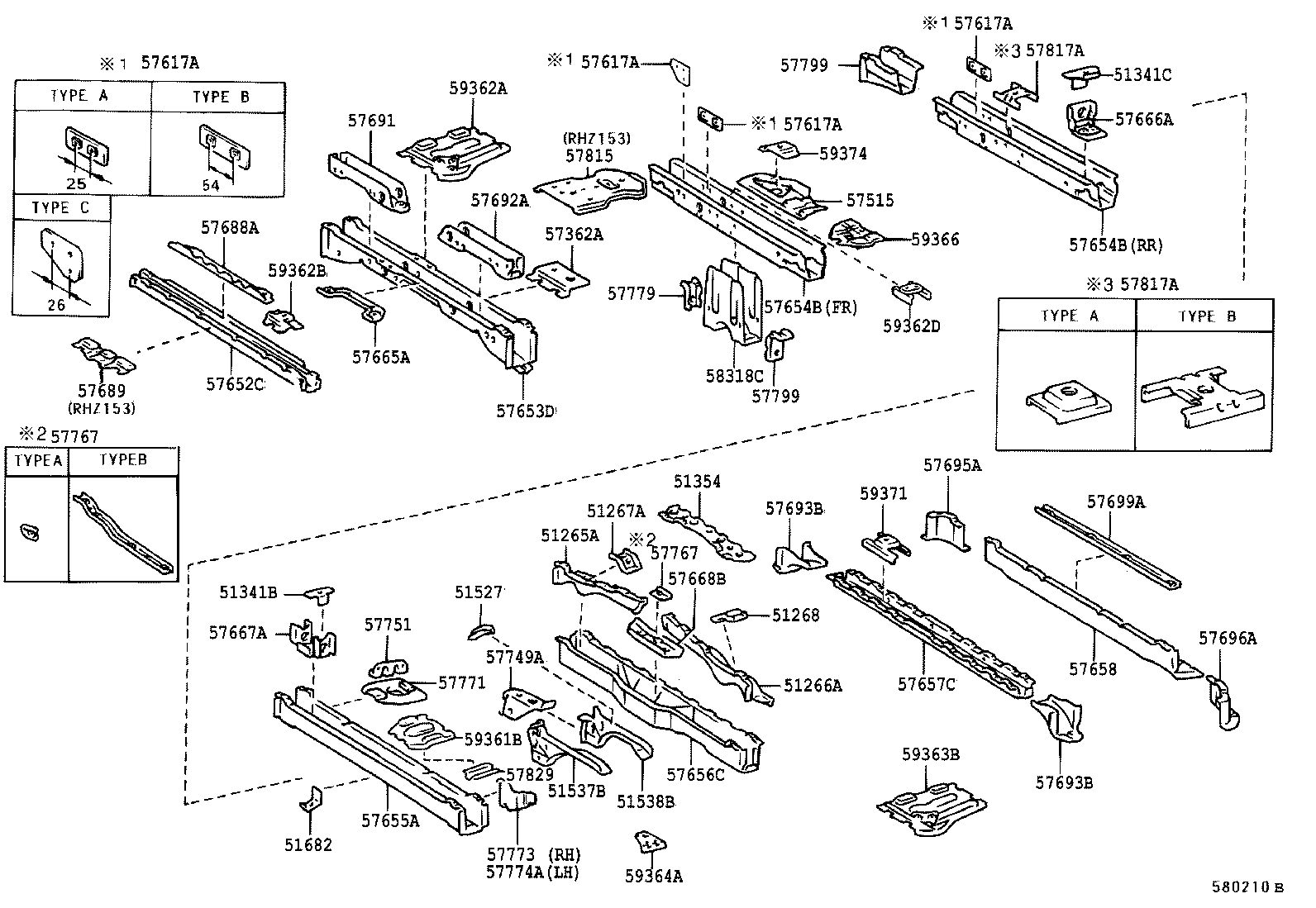

 | ILLUST NO. 1 OF 3(8908-9308)
 | |
| ILLUST NO. 1 OF 3(9308- )RZH112..SRF , (9308- )LH174..10S,1
 | |
| 5S , (9308- )LH10#,11#,125,154,16#,172,176,184,RZH10#,113,114,115,125,135,15#
| |

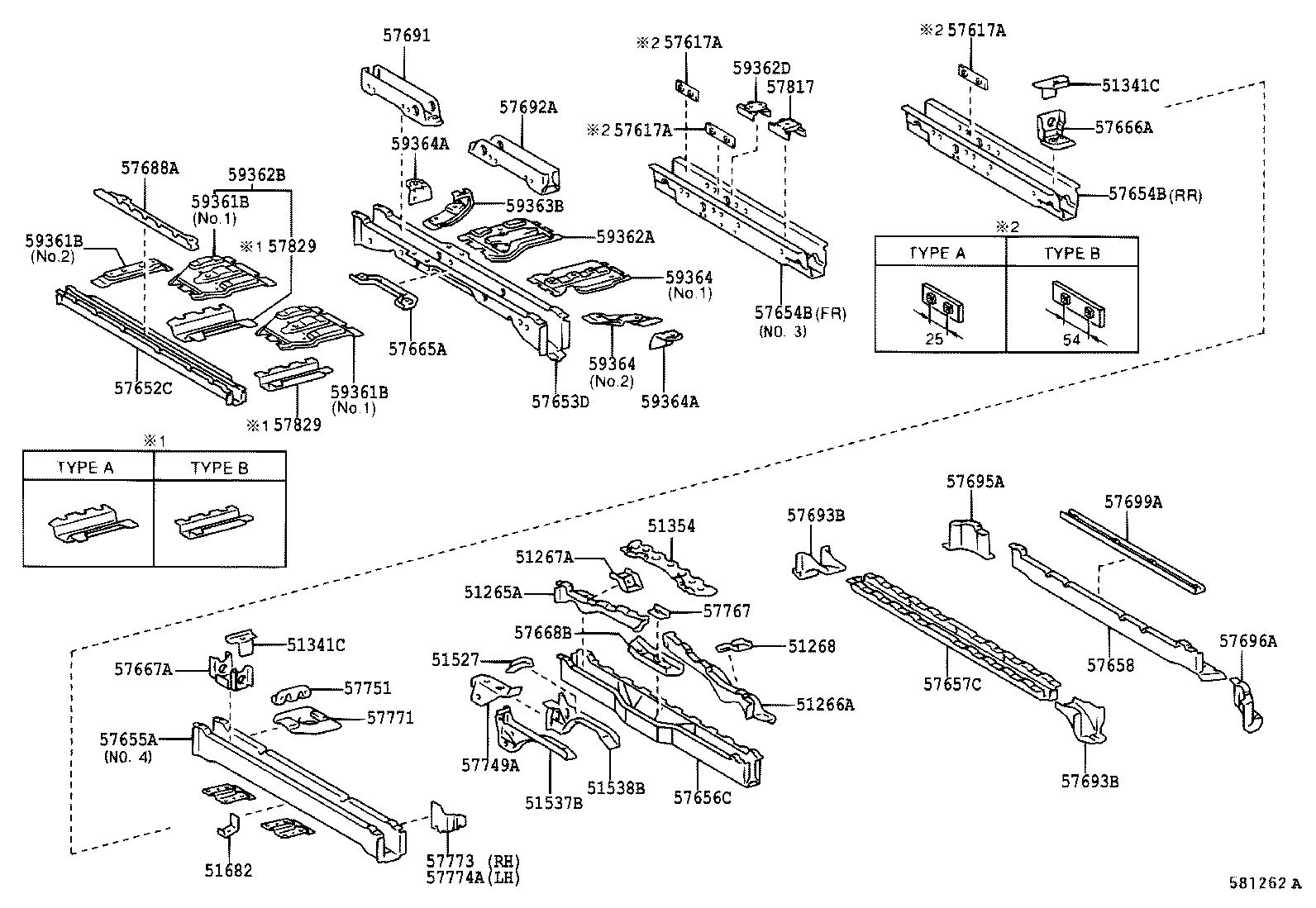

| ILLUST NO. 2 OF 3(8908- )LH102,103,112,113,125,172,174,RZH102,
 | |
| 103,105,112,113,125,135,153..RHD..4D , (9611- )RZH103,113,135,153..RHD..4D..EFI
| |
| ILLUST NO. 2 OF 3(8908- )LH102,103,112,113,125,172,174,RZH102,
| |
| 103,105,112,113,125,135,153..RHD..4D , (9611- )RZH103,113,135,153..RHD..4D..EFI
| |
| ILLUST NO. 2 OF 3(8908- )LH102,112,113,172,174,RZH102,103,112,
 | |
| 113,115..LHD..4D
| |
| ILLUST NO. 2 OF 3(8908- )5D
 | |
| ILLUST NO. 2 OF 3(8908- )LH104,105,114,115,125,162,172,174,184
 | |
| ,RZH104,105,11#,125,135,153..RHD..4D
| |
| ILLUST NO. 2 OF 3(8908- )LH104,105,114,115,164,166,17#,RZH104,
 | |
| 105,114,115..LHD..4D
| |
| ILLUST NO. 2 OF 3(0008- )LH154,RZH155
 | |

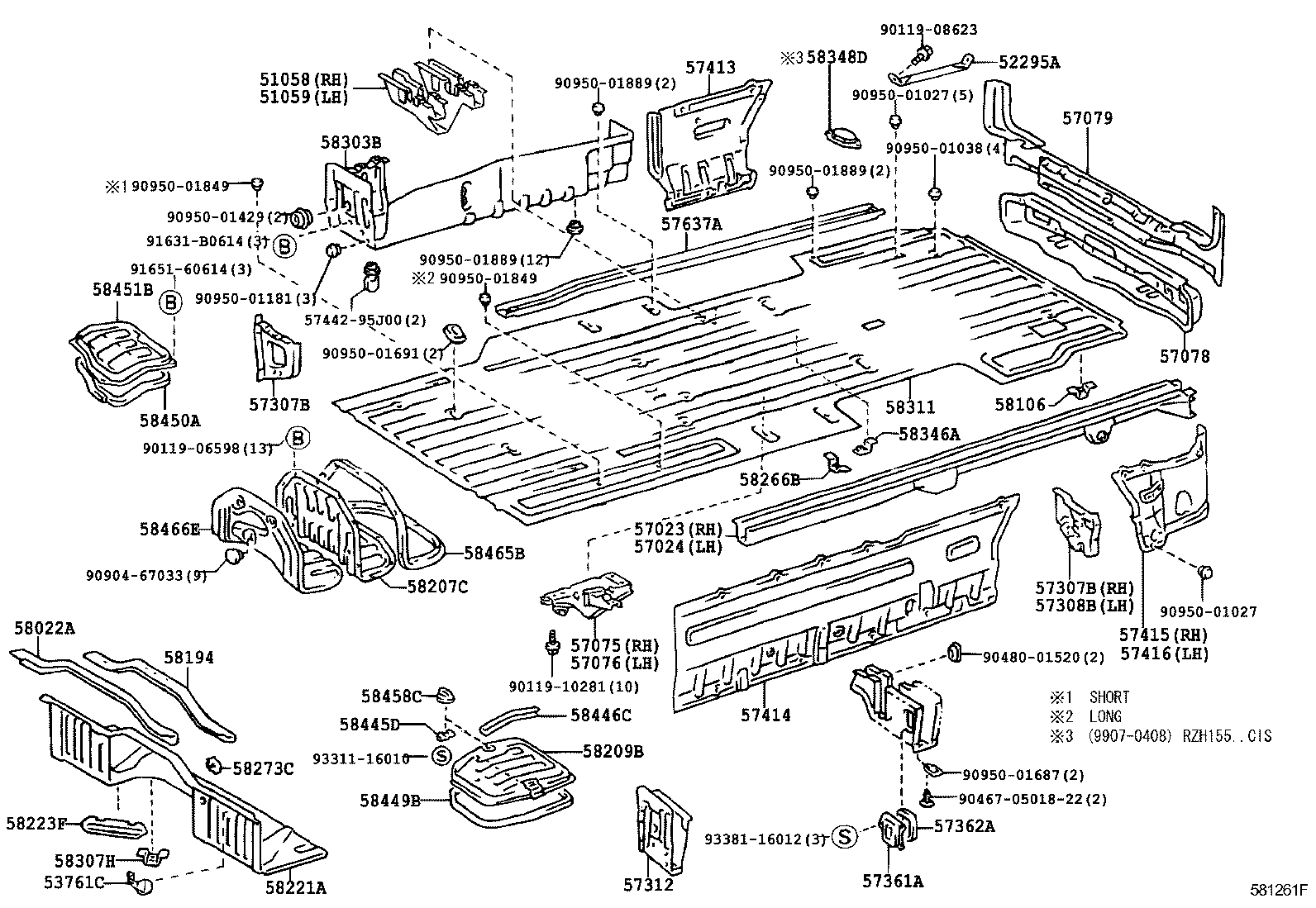

| ILLUST NO. 3 OF 3(8908- )LH102,103,112,113,RZH102,103,112,113,
 | |
| 135,153
| |
| ILLUST NO. 3 OF 3(8908- )LH104,105,114,115,125,16#,17#,184,RZH
 | |
| 104,105,114,115,125,135,153
| |
| ILLUST NO. 3 OF 3(9611- )RZH135,153
 | |
| ILLUST NO. 3 OF 3(0008- )LH154,RZH155
 |
|
Для вибору запчастини за номером на схемі збільште зображення. |
|
|
|
